V2MAG
Ultra-Sensitive Airborne Magnetometer
V2MAG is an integrated airborne magnetometer powered by dual quantum gradiometer technology (QuSpin Gen-2) with a record-low 0.01 nT system noise — detecting ferrous targets at depths and altitudes other UAV magnetometers cannot reach. A foldable, ground-contact-safe design and the UMAGMission workflow make it turnkey for UXO detection and geophysical survey on Harris Aerial Carrier airframes.
Engineered for the Lowest Noise Floor

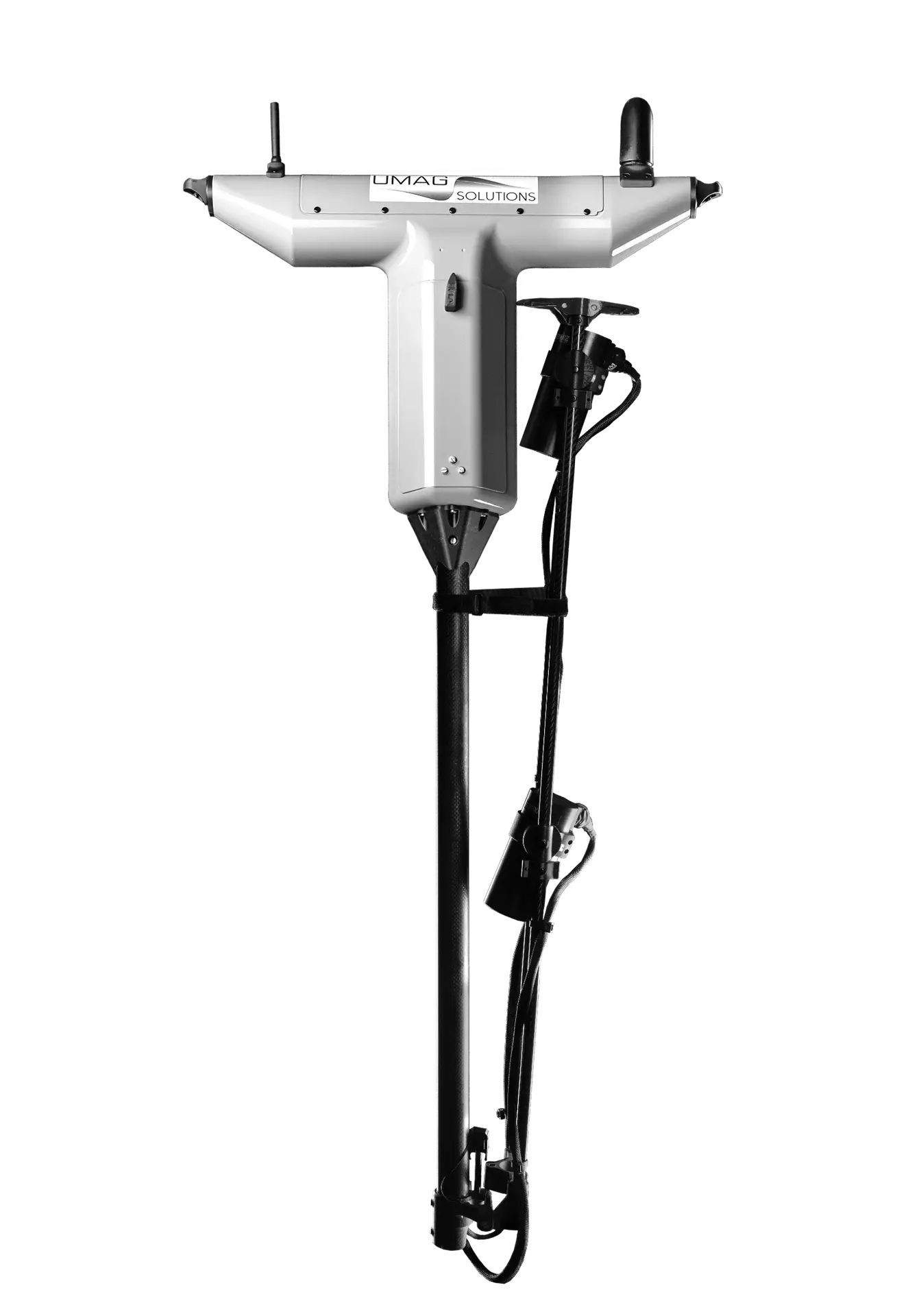

A compact, foldable dual-sensor gradiometer built for record-low system noise and safe, ground-hugging flight. Click the image to enlarge.
Record-Low Noise, Field-Ready Workflow
Dual quantum gradiometer sensing, resilient positioning, and turnkey software in a ship-deployable package.
World-Record 0.01 nT Noise
Record-low system noise lets V2MAG detect ferrous targets at depths and altitudes unmatched by other UAV magnetometers, with 0.01 nT raw heading error.
Dual Quantum Gradiometer
Dual QuSpin Gen-2 quantum sensors in a gradiometer configuration isolate near-surface anomalies and reject regional and diurnal drift.
GNSS-Resilient cm Positioning
Centimeter-level positioning with jamming and spoofing resilience, plus an encrypted long-range data link with redundancy for real-time transfer.
UMAGMission Turnkey Workflow
Layman-applicable end-to-end operation software, ground-contact-safe low clearance, and ship-deployable setup for demanding survey environments.
Where V2MAG Flies
Unveiling the Power & Performance Details
| Sensor Architecture | Dual quantum sensor (gradiometer) |
|---|---|
| Sensor Core | QuSpin Gen-2 |
| Total Noise (raw) | 0.01 nT peak-to-peak (world-record low) |
| Heading Error (raw) | 0.01 nT |
| Positioning | Centimeter-level; GNSS jamming/spoofing resilient |
| Data Link | Encrypted long-range radio, redundant, real-time |
| Total Weight | 4.9 kg |
|---|---|
| Form Factor | Stand-alone, field-deployable payload |
| Mounting | Quick-release mechanical integration |
| Software | UMAGMission end-to-end |
| Survey Speed | 0.5–8 m/s |
| Coverage | Onshore 2–6 ha/h; offshore 5–12 ha/h |
| Weather Envelope | Wind 10–14 m/s (gusts 15–17); −10 to +35 °C; ≤10 mm/h |
| Deployment | Ship-deployable |
At a Glance
- Dual quantum gradiometer (QuSpin Gen-2)
- World-record 0.01 nT system noise
- Centimeter GNSS, jam/spoof resilient
- UMAGMission turnkey software
- Foldable, ground-contact-safe
- 4.9 kg, ship-deployable
*Performance figures per V2MAG / UMag published specifications. Designed for integration on Harris Aerial Carrier airframes.
Contact Us for a Free Quote Today
Pair V2MAG with the right Harris Aerial Carrier for your survey area, endurance, and operating environment.
