Long-Range Dual EO-IR Turret with HD Thermal — 350 g
NightHawk2-UZ is a dual EO-IR stabilized camera turret crafted for long-range observation that demands very low weight. Embodying NextVision's latest innovations, it provides unmatched capabilities — with an HD 1280×720 thermal core and x40 continuous EO zoom. Trusted by 250+ manufacturers and integrators across 40+ countries.

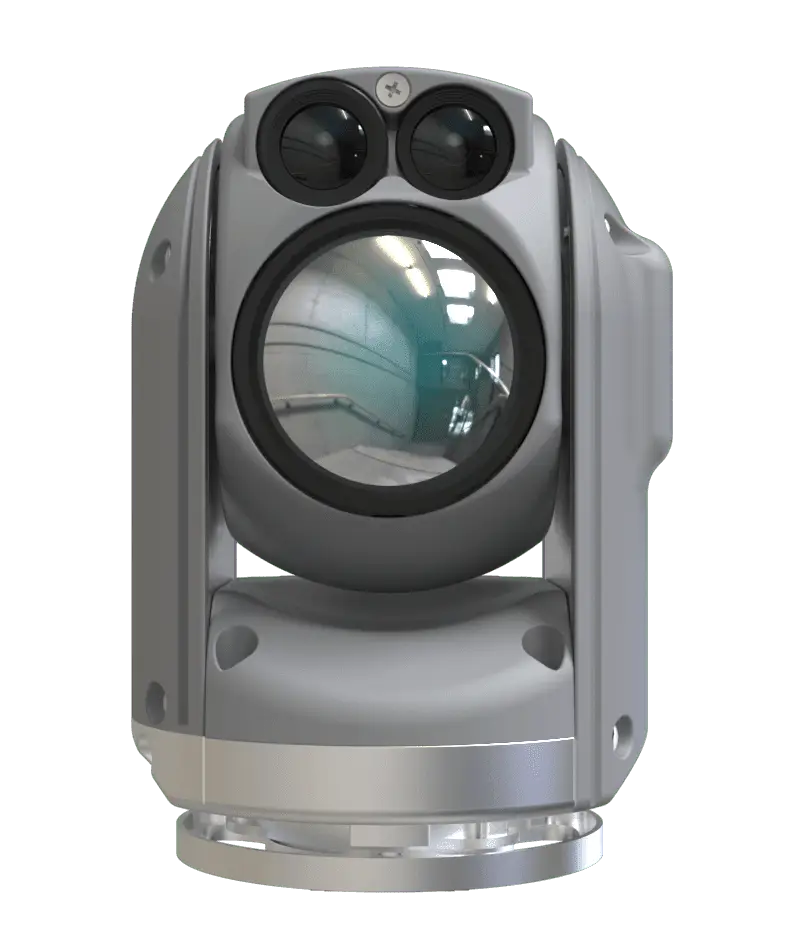

A long-range dual EO-IR turret with an HD thermal core in a compact 350 g body. Click the image to enlarge.
An HD thermal core, x40 EO zoom, and optional continuous rotation — in a turret built for low-weight platforms.
An HD LWIR thermal core resolves far more night-time detail than 640-class sensors — sharper targets at longer range.
x20 optical plus x2 digital (x40 total) continuous zoom, narrowing from a 60° wide field to 1.5° for distant observation.
Yaw/roll spans -180° to +180°, with an optional 360° continuous configuration for uninterrupted tracking.
A compact turret (D-64 mm × H-94 mm) that keeps payload weight low for longer endurance.
| Spectral Band | 400–700 nm |
|---|---|
| Config I — Resolution | 1280×720 |
| Config I — Zoom | x20 + x2 digital (x40 total) continuous |
| Config I — HFOV | 60° WFOV / 3° NFOV / 1.5° DFOV |
| Config II — Resolution | 1920×1080 |
| Config II — Zoom | x13 + x2 digital (x26 total) continuous |
| Config II — HFOV | 60° WFOV / 4.5° NFOV / 2.2° DFOV |
| Type | LWIR uncooled (8–14 µm) |
|---|---|
| Resolution | 1280×720 (HD) |
| Zoom | x4 continuous digital |
| HFOV | 25° WFOV / 6° DFOV |
| Weight | 350 g |
|---|---|
| Dimensions | D-64 mm × H-94 mm |
| Operating Temp | -20 °C to +55 °C |
| Pitch | -45° to +135° |
| Yaw / Roll | -180° to +180° (optional 360° continuous) |
Pair the NightHawk2-UZ with the right Harris Aerial Carrier for your mission and operating environment.
