Compact VNIR Hyperspectral — 400 to 1,000 nm
Headwall's original Nano-Hyperspec® took the remote-sensing community by storm, becoming the best-selling system of its kind. The next-generation Nano™ HP adds improved spatial resolution and more spectral bands in an exceptionally small, light, and power-efficient form factor — available as a payload or turnkey system, with optional LiDAR and thermal imagers.
Browse the gallery with the arrows or thumbnails, and click any image to enlarge it.
High spectral resolution in a featherweight package, factory-integrated and flight-tested — with optional LiDAR and thermal.
340 spectral bands across the visible and near-infrared on an aberration-corrected spectrograph — rich data for vegetation and materials.
Just 1.05 kg and 14.4 W — an exceptionally small, light, and power-efficient sensor for compact-class Carriers.
An internally-mounted high-performance GPS-IMU with PPK and 480 GB of solid-state storage — factory-integrated and flight-tested.

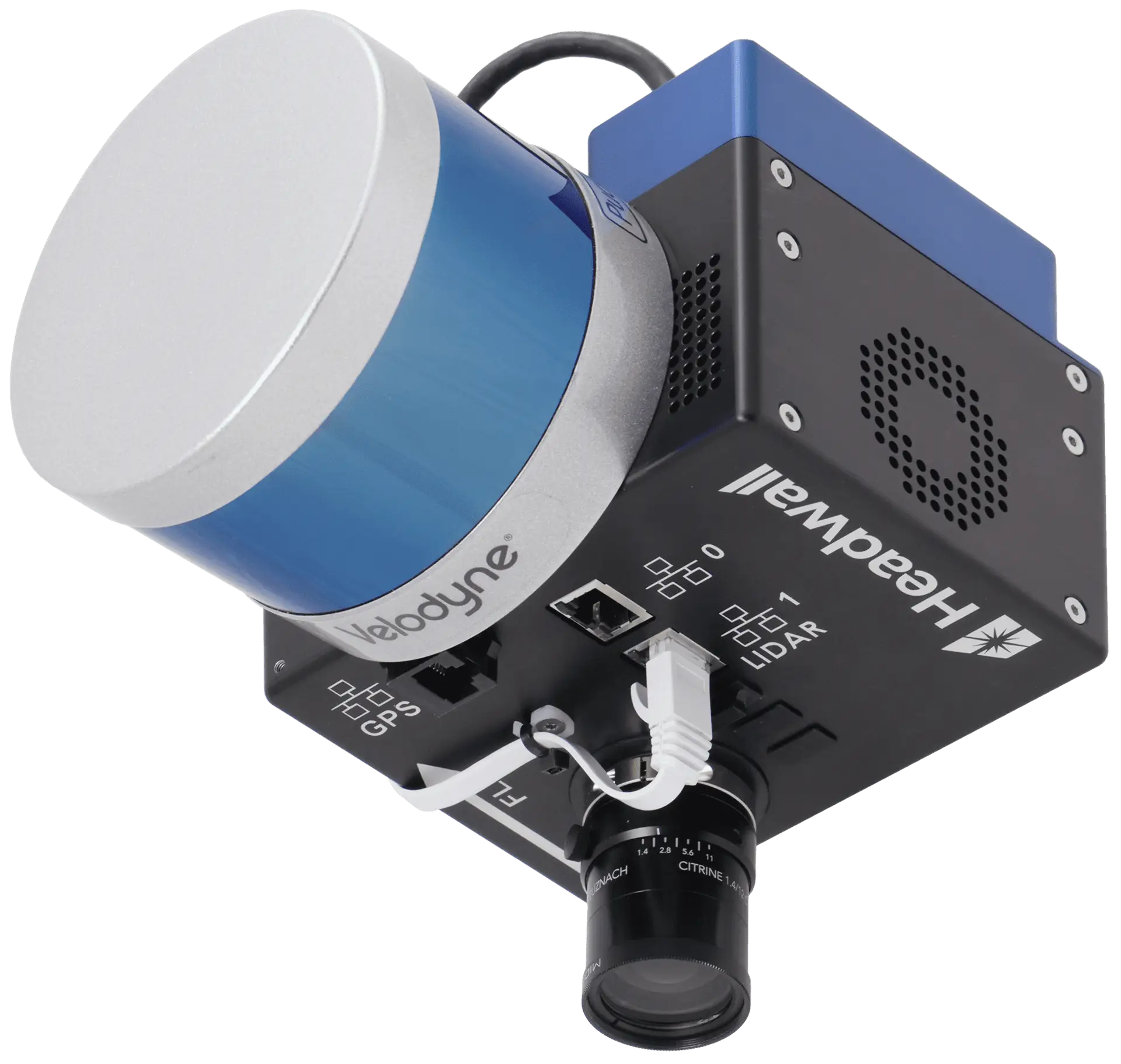

Add LiDAR for high-resolution DEM and 3D point clouds, or thermal imagers, to build a payload suited to your needs.
| Wavelength Range | 400 – 1,000 nm |
|---|---|
| Spectral Bands | 340 |
| Spatial Pixels | 1020 |
| Camera Technology | CMOS |
| Pixel Pitch | 5.86 µm |
| Aperture | f/2.5 |
| Dispersion / Pixel | 1.76 nm |
| Entrance Slit Width | 20 µm |
| Spectral FWHM | 6 nm |
| Frame Rate (sustained) | 250 Hz |
| ADC Bit Depth | 12-bit |
| Spectrograph Design | Aberration-Corrected |
| Digital Interface | GigE |
|---|---|
| GPS/IMU | Internally-mounted high-performance, with PPK |
| Data Storage | 480 GB solid-state |
| Weight | 1.05 kg (2.32 lbs) / 1.73 kg (3.81 lbs) with LiDAR |
| Dimensions | 132×102×73 mm / 132×175×99 mm with LiDAR |
| Power (without LiDAR) | 14.4 W typical |
| Operating Temp | 0 – 40 °C / 32 – 104 °F |
| Storage Temp | -20 – 60 °C / -4 – 140 °F |
Pair the Nano HP with the right Harris Aerial Carrier for your mission and operating environment.
