Co-Aligned VNIR + SWIR Hyperspectral — 400 to 2,500 nm

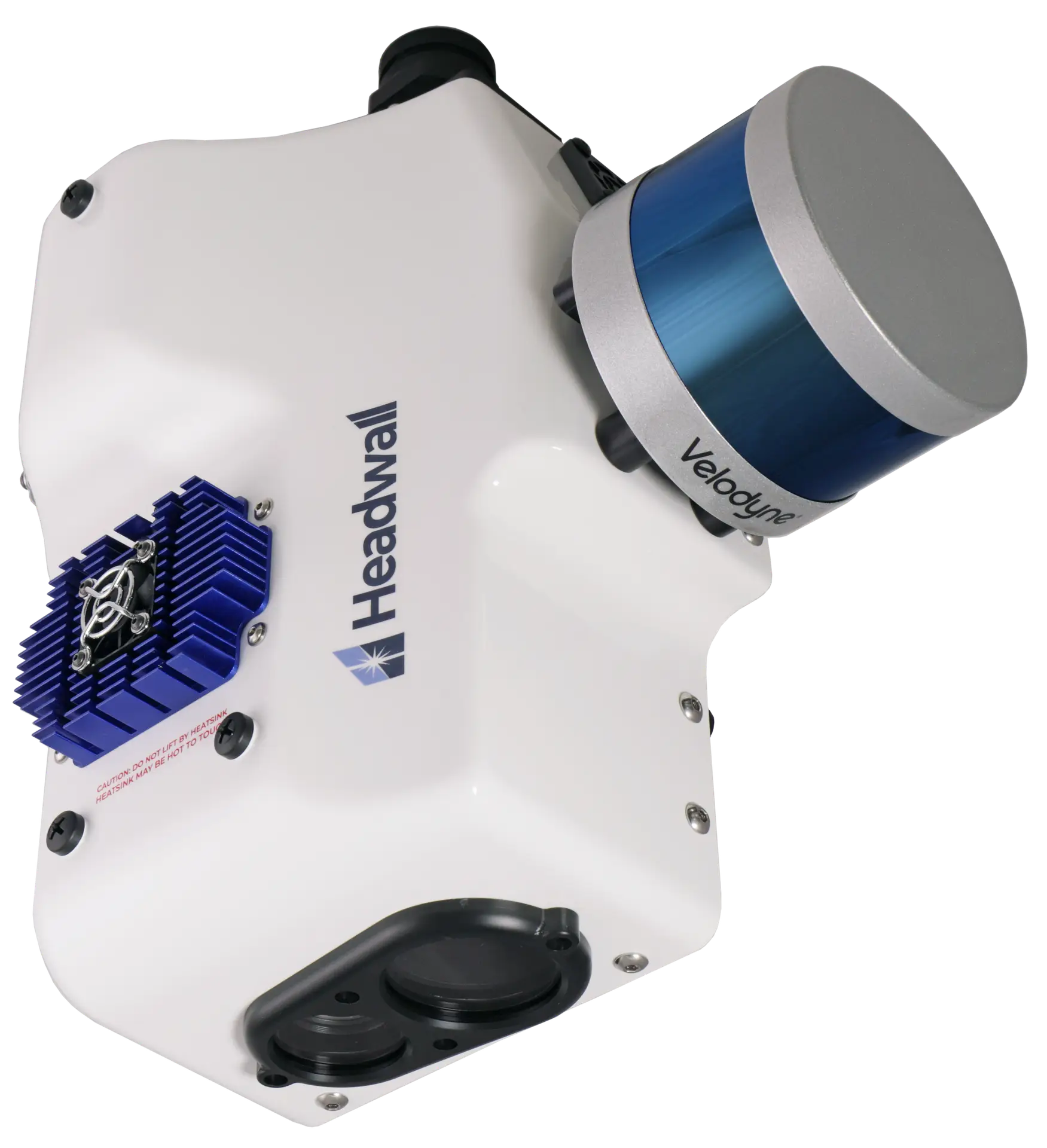

Headwall's original Hyperspec® Co-Aligned VNIR-SWIR became the best-selling system of its kind. The next-generation Co-Aligned HP™ features improved VNIR spatial resolution and a greater number of spectral bands in an exceptionally small, light, and power-efficient form factor — available as a payload or as a turnkey system, with optional integrated LiDAR.
Browse the gallery with the arrows or thumbnails, and click any image to enlarge it.
Full VNIR-SWIR coverage, best-in-class SWaP, and factory integration — with optional LiDAR for 3D context.
A co-aligned, aberration-corrected spectrograph captures 400–1000 nm (VNIR) and 900–2500 nm (SWIR) in one tightly registered sensor.
An exceptionally small, light, and power-efficient form factor — perfect for mining, infrastructure, and environmental monitoring.
Built-in Applanix APX-15 GPS-IMU and 480 GB of solid-state storage per sensor — delivered ready to fly.

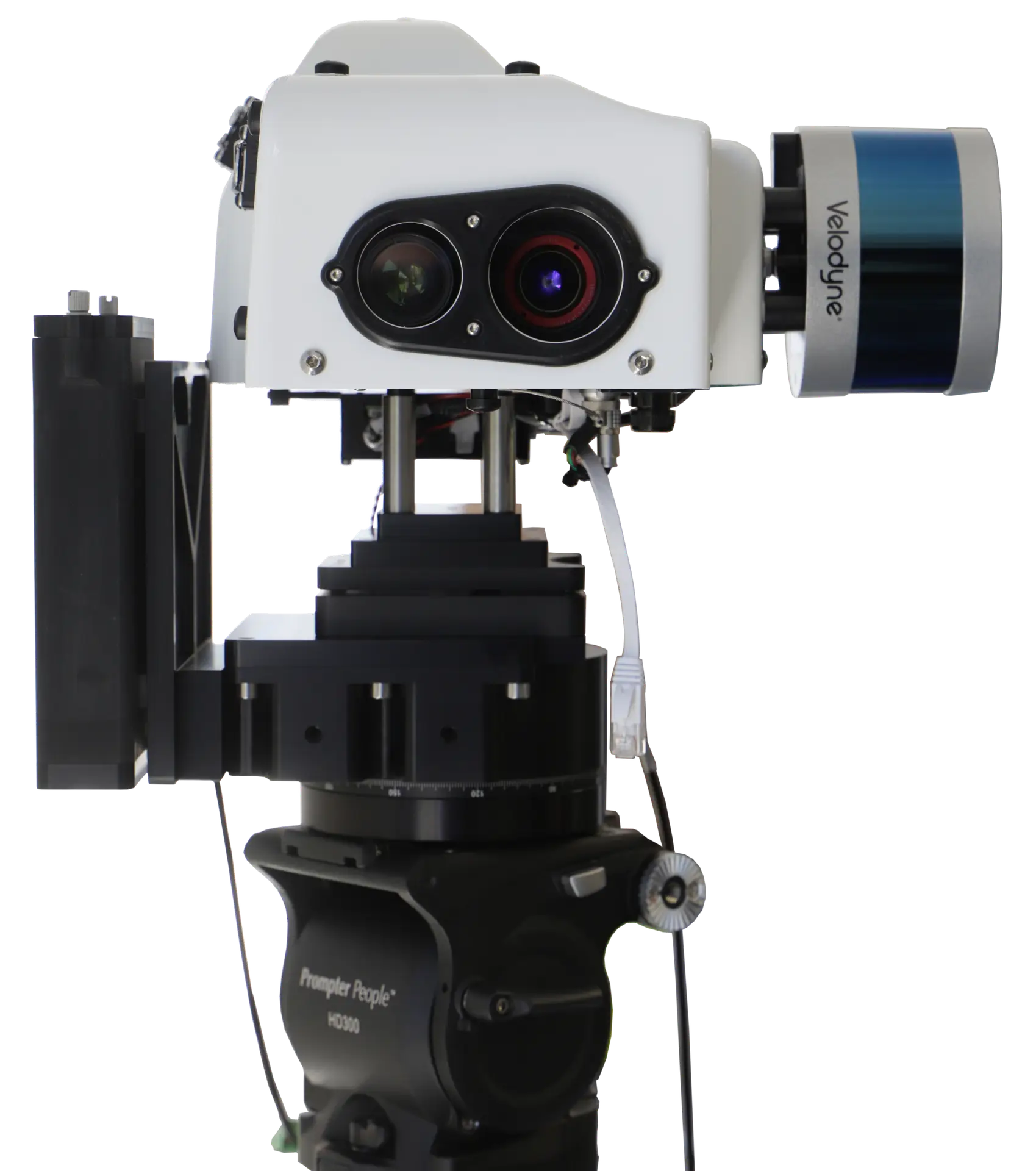

Add LiDAR for high-resolution Digital Elevation Models (DEM) and 3D point-cloud creation alongside the spectral data.
| Spectral Bands | 340 |
|---|---|
| Spatial Pixels | 1020 |
| Camera Technology | CMOS |
| Pixel Pitch | 5.86 µm |
| Dispersion / Pixel | 1.76 nm |
| Spectral FWHM | 6 nm |
| Frame Rate (sustained) | 250 Hz |
| ADC Bit Depth | 12-bit |
| Cooling | No |
| Spectral Bands | 267 |
|---|---|
| Spatial Pixels | 640 |
| Camera Technology | MCT |
| Pixel Pitch | 15 µm |
| Dispersion / Pixel | 6 nm |
| Spectral FWHM | 8 nm |
| Frame Rate (sustained) | 200 Hz |
| ADC Bit Depth | 16-bit |
| Cooling | Stirling-Cooled |
| Aperture | f/2.5 |
|---|---|
| Spectrograph Design | Co-Aligned & Aberration-Corrected |
| Digital Interface | GigE |
| GPS/IMU | Applanix APX-15 |
| Data Storage | 480 GB solid-state for each sensor |
| Power (typical / max) | VNIR 14.4 W / 36 W; SWIR 37 W / 40 W |
| Weight (sensor only) | 4.0 kg / 8.8 lbs |
| Dimensions (sensor only) | 272 × 211 × 165 mm |
| Operating Temp | 0 – 40 °C |
Pair the Co-Aligned VNIR-SWIR with the right Harris Aerial Carrier for your mission and operating environment.
