MagArrow II
UAV-Deployed Total-Field Magnetometer
The MagArrow II is a self-contained UAV magnetometer built on laser-pumped cesium vapor sensors in a dual-sensor, no-dead-zone architecture. With 1000 Hz sampling it surveys at up to ~10 m/s while holding roughly 1 cm sample spacing. Onboard GPS, Wi-Fi, storage, and hot-swappable batteries make it UAV-agnostic and fast to deploy on Harris Aerial Carrier airframes.
Fast, Clean Magnetic Data at Speed

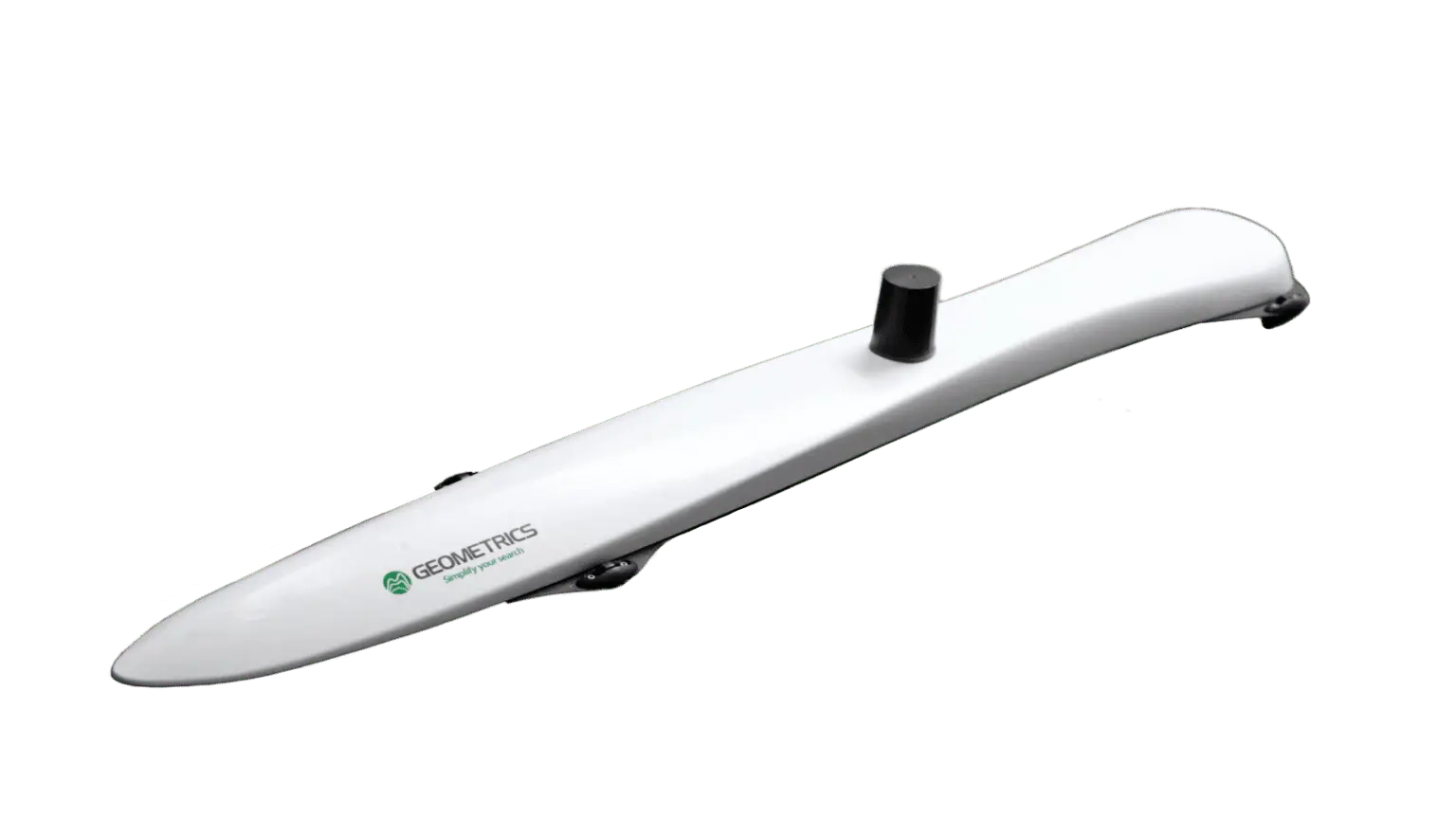

An aerodynamic, self-contained cesium-vapor pod that suspends beneath the aircraft — no electrical connection required. Click the image to enlarge.
Cesium-Vapor Sensitivity, No Drop-Outs
Dual-sensor cesium vapor, 1000 Hz sampling, and a fully self-contained design for fast, reliable surveys.
Laser-Pumped Cesium Vapor
Cs-133 (non-radioactive) total-field scalar sensing with 0.005 nT/√Hz typical noise across a 20,000–100,000 nT range.
No Dead Zones, Dual Sensor
A dual-sensor architecture eliminates dead-zone drop-outs across full 360° equatorial and polar orientations.
1000 Hz High-Speed Sampling
GPS 1 PPS-synchronized 1000 Hz sampling supports ~10 m/s survey speeds at roughly 1 cm sample spacing.
Self-Contained & UAV-Agnostic
Onboard GPS, Wi-Fi, and storage with hot-swappable batteries — no electrical connection to the aircraft required.
Where MagArrow II Flies
Unveiling the Power & Performance Details
| Operating Principle | Laser-pumped cesium vapor (Cs-133, non-radioactive) total-field scalar |
|---|---|
| Operating Range | 20,000–100,000 nT |
| Noise / Sensitivity | 0.005 nT/√Hz typ. (0.01 guaranteed) |
| Sample Rate | 1000 Hz (GPS 1 PPS synced) |
| Bandwidth | 400 Hz |
| Gradient Tolerance | 10,000 nT/m |
| Dead Zone | None (dual-sensor design) |
| Heading Error | ±5 nT (full 360° spins) |
| Architecture | Self-contained pod, UAV-agnostic (no UAV electrical connection) |
|---|---|
| Total Weight | 1.2 kg (without batteries) |
| Length | 1 m |
| Positioning | GPS 50% CEP ≤1.5 m; ≤1.0 m with SBAS |
| Storage | 32 GB micro-SD (U3), built-in logger |
| Connectivity | Wi-Fi 2.4 GHz + web UI; USB upgrade port |
| Batteries | 2 × XT60; non-magnetic 1800/2200 mAh 3S LiPo, hot-swappable, ~2–3 h |
| Operating Temp | −20 to +40 °C |
| Companion App | Android tablet/phone (not iOS) |
At a Glance
- Laser-pumped cesium vapor (Cs-133)
- Dual sensor — no dead zones
- 1000 Hz, ~10 m/s surveys
- 0.005 nT/√Hz typical noise
- Onboard GPS, Wi-Fi, storage
- Hot-swappable batteries, 1.2 kg
*Sensor performance figures are Geometrics MagArrow II published specifications; operated with Android devices (not iOS). Designed for integration on Harris Aerial Carrier airframes.
