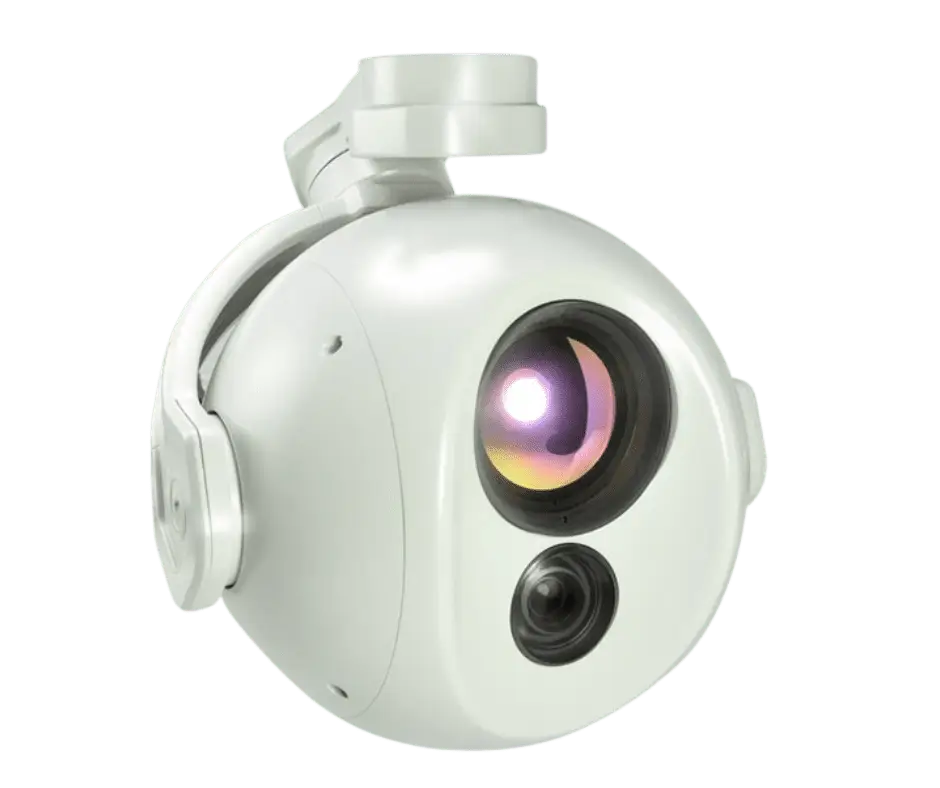

Viewpro Q40 TIR

Dual Sensors Redefining Aerial Imaging

Q40TIR is a powerful dual sensor with 4K camera and 640*480 50mm lens thermal imager. Stabilizing the highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor, the high-end cameras module and advanced pinpoint anti-vibration system bring you extreme stable high image quality at anytime. Specially designed for long distance details inspections, research & rescue, surveillance and aerial photography, especially for big UAV.


Lorem ipsum dolor sit amet, consectetur adipiscing elit

4K Camera with 40x Advanced IA Zoom

Powered by Panasonic 1/2.3” COMS CMOS module, with 3840p UHD image quality illumination, Q40TIR can still clearly display image features in utter poor light environment. 25.9 mega effective pixel and 4K video camera , combined with 40x advanced IA zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

IR+EO Dual Sensors Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

Powerful 50mm Thermal Imager

Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 50mm lens thermal image sensor, Q40TIR can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

Multi Output Methods Optional

Q40TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree endless pan.

Multi Control Methods

Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software you can fulfill IP output, TTL control and TCP contorl.

Primary Applications


Police & Law Enforcement

Utilities Inspection

Search & Rescue


Unveiling the Power and Performance Details

  • Hardware Parameter
  • Working voltage 12V
  • Input voltage 3S ~ 6S
  • Output voltage 5V (connect with PWM)
  • Dynamic current 950~1700mA @ 12V
  • Idle current 950mA @ 12V
  • Working environment temp. -20℃ ~ +60℃
  • Output micro HDMI(1080P 50fps/60fps) / IP (720p/1080p 25fps/30fps)
  • Local-storage TF card (Up to 256G, class 10, FAT32 or ex FAT format)
  • Picture storage format in TF card JPG(1920*1080 /1280*720)
  • Video storage format in TF card MP4 (1080P/720P 25fps/30fps)
  • Control method PWM / TTL / S.BUS / TCP(IP output)
  • Gimbal Spec
  • Mechanical Range Pitch/Tilt: -55°~130°, Roll: ±45°, Yaw/Pan: ±300° / ±360°*N (IP output version)
  • Controllable Range Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
  • Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
  • Angle range of software design Pitch/Tilt: -30°~90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
  • Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
  • One-key to center
  • Camera spec
  • Imager Sensor Panasonic 1/2.3inch CMOS
  • Picture quality F1.8~F3.6(f=4.08~81.6mm)
  • Zoom Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD)
  • Total pixel 25.9MP
  • Record effective pixel 4k:8.29MP / FHD:6.10MP(16:9)
  • Optical Image Stabilization Optical Image Stabilization
  • Record format MPEG-4
  • Record pixel 4k:3840*2160/30p FHD:1080/60p (HD:720/30p)
  • Record shutter speed(Manual) 1/30 ~ 1/8000
  • Picture format JPEG
  • Picture pixel Picture pixel
  • Picture shutter speed(Manual) Picture shutter speed(Manual)
  • Dynamic range 65dB
  • Min object distance Min object distance
  • Viewing angle Horizontal: 62.95°(Wide end) ~ 3.45°(Tele end)
  • Vertical: 38.00°(wide end) ~ 1.94°(tele end)
  • Sync system Progressive scanning
  • Local video 1080P 30fps local TF card
  • HD output 1080P 60fps HDMI1.4
  • S/N ratio 38dB
  • Min illumination Color 0.05lux@F1.6
  • Backlight compensation Backlight compensation/strong light inhibition
  • Gain Auto
  • White balance Auto/Manual
  • Focus Auto/Manual/One-time automatic focus
  • Focus speed 2s
  • Lens initialization Built-in
  • User presetting bit 20 sets
  • Image rotation 180°, Horizontal/Vertical mirror image
  • Facial recognition
  • IR Thermal Imager Spec
  • Focus Length 50mm
  • Horizontal FOV 12.4
  • Vertical FOV 9.3
  • Diagonal FOV 15.5
  • Detective Distance (Man: 1.8x0.5m) 1471 meters
  • Recognize Distance (Man: 1.8x0.5m) 368 meters
  • Verified Distance (Man: 1.8x0.5m) 184 meters
  • Detective Distance (Car: 4.2x1.8m) 4510 meters
  • Recognize Distance (Car: 4.2x1.8m) 1127 meters
  • Verified Distance (Car: 4.2x1.8m) 564 meters
  • Working mode Uncooled long wave (8μm~14μm) thermal imager
  • Detector pixel 640*480
  • Pixel size 17μm
  • Focusing method Athermal prime lens
  • Emissivity correction 0.01~1
  • NETD ≤50mK (@25℃)
  • MRTD ≤650mK (@characteristic frequency)
  • Image enhancement Auto adjust image brightness and contrast ratio
  • Color palette White, iron red, pseudo color
  • Color Auto Non-uniform correction Yes (no shutter)
  • Digital zoom 1x ~ 4x
  • Sync correct time Yes
  • Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
  • Temperature warning 0℃~120℃ (For thermometry version only)
  • EO / IR Camera Object Tracking
  • Update rate of deviation pixel 50Hz
  • Output delay of deviation pixel <5ms
  • Minimum object contrast 5%
  • SNR 4
  • Minimum object size 32*32 pixel
  • Maximum object size 128*128 pixel
  • Tracking speed ±48 pixel/frame
  • Object memory time 100 frames (4s)
  • The mean square root values of pulse noise in the object position < 0.5 pixel
  • Packing Information
  • N.W 1710g (Viewport version)
  • Product meas. 175.5*176*218mm
  • Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
  • G.W. 3927g
  • Package meas. 360*300*250mm
