Viewpro Q30 TIR

Zoom in on Unseen Realms

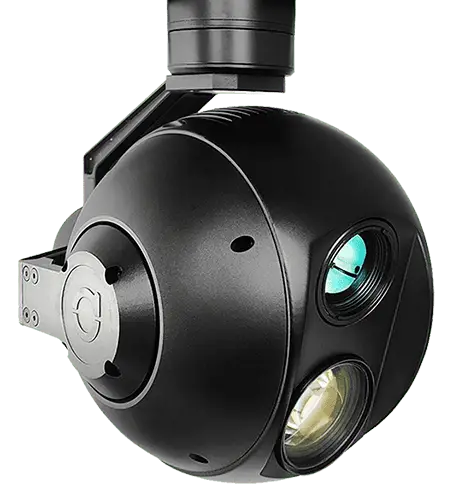

Q30TIR-50 is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera and a 640×480 thermal camera. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 50mm thermal can reveal the damage of buildings, fire spark in forest, the location of people or animal and more. It’s widely used in day and night surveillance, search, inspection and firefighting.

Features

Discover Key Features

30x Time Optical Zoom EO Camera

Powered by 30x optical zoom high resolution camera module, Q30TIR-50 can recognize cars, buildings and structures in 3000 meters, which can meet the application requirements of various domains.

Multi Output Methods Optional

Q30TIR-50 supports both HDMI output, Ethernet/IP output, and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree endless pan.

Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional, IP output version also supports TCP control via ethernet cable. With Viewpro software you can fulfill IP output, TTL control, and TCP control.

Advanced IR Thermal Imager

Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Q30TIR-50 can record and transmit thermal image and visible images at the same time in PIP format.

Optional thermometry version: With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between 0℃~120℃ to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.

Visible Light and Thermal Imager Dual Sensors Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, and trace information display. The tracking speed is up to 32pixel/frame, the object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

Primary Applications

Firefighting

Police & Law Enforcement

Utilities Inspection

Search & Rescue

Specifications

Unveiling the Power and Performance Details

  • Hardware Parameter
  • Working voltage 12V
  • Input voltage 3S ~ 6S
  • Output voltage 5V (connect with PWM)
  • Dynamic current 900mA @ 12V
  • Idle current 750mA @ 12V
  • Working environment temp. -20℃ ~ +60℃
  • Output micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps)
  • Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
  • Picture storage format in TF card JPG(1920*1080)
  • Video storage format in TF card MP4 (1080P/720P 25fps/30fps)
  • Control method PWM / TTL / S.BUS / TCP(IP output)
  • Gimbal Spec
  • Angle range of structure design Pitch/Tilt: -40°~110°,
  • Roll: ±70°
  • Yaw/Pan: ±300° / ±360°*N (IP / SDI output version)
  • Angle range of software design Pitch/Tilt: -30°~90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
  • Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
  • One-key to center
  • Camera spec
  • Imager Sensor SONY 1/2.8" "Exmor R" CMOS
  • Picture quality Full HD 1080 (1920*1080)
  • Effective pixel 2.13MP
  • Lens optical zoom 30x, F=4.3~129mm
  • Digital zoom 12x (360x with optical zoom)
  • Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
  • Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
  • 720p mode: 63.7°(wide end) ~ 2.3°(tele end)
  • SD: 47.8°(wide end) ~ 1.7°(tele end)
  • Sync system Internal
  • S/N ratio more than 50dB
  • Min illumination Color 0.01lux@F1.6
  • Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
  • Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
  • Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
  • White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/
  • White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/ Auto/Outdoor Auto)
  • Shutter speed 1/1s to 1/10,000s, 22 steps
  • Backlight compensation Yes
  • Aperture control 16 steps
  • Defog Yes
  • OSD Yes
  • Camera Object Tracking
  • Update rate of deviation pixel 50Hz
  • Output delay of deviation pixel 5ms
  • Minimum object contrast 5%
  • SNR 4
  • Minimum object size 32*32 pixel
  • Maximum object size 128*128 pixel
  • Tracking speed 32 pixel/frame
  • Object memory time 100 frames (4s)
  • The mean square root values of pulse noise in the object position < 0.5 pixel
  • Thermal Imager Spec
  • Lens size 50mm
  • Horizontal FOV 12.4
  • Vertical FOV 9.3
  • Diagonal FOV 15.5
  • Detective Distance (Man: 1.8x0.5m) 1471 meters
  • Recognize Distance (Man: 1.8x0.5m) 368 meters
  • Verified Distance (Man: 1.8x0.5m) 184 meters
  • Detective Distance (Car: 4.2x1.8m) 4510 meters
  • Recognize Distance (Car: 4.2x1.8m) 1127 meters
  • Verified Distance (Car: 4.2x1.8m) 564 meters
  • Working mode Uncooled long wave (8μm~14μm) thermal imager
  • Detector pixel 640*480
  • Pixel size 17μm
  • Focusing method Athermal prime lens
  • Emissivity correction 0.01~1
  • NETD ≤60mK (@25℃)
  • MRTD ≤650mK (@characteristic frequency)
  • Image enhancement Auto adjust image brightness and contrast ratio
  • Color palette White, iron red, pseudo color
  • Auto Non-uniform correction Yes (no shutter)
  • Digital zoom 1x ~ 4x
  • Sync correct time Yes
  • Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
  • Temperature warning 0℃~120℃ (For thermometry version only)
  • Thermal Imager Object Tracking
  • Update rate of deviation pixel 50Hz
  • Output delay of deviation pixel 5ms
  • Minimum object size 32*32 pixel
  • Maximum object size 128*128 pixel
  • Tracking speed 32 pixel/frame
  • Object memory time 100 frames (4s)
  • Packing Information
  • N.W 1219g (Viewport version)
  • Product meas. 127.6*164.5*173.5mm
  • Accessories 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
