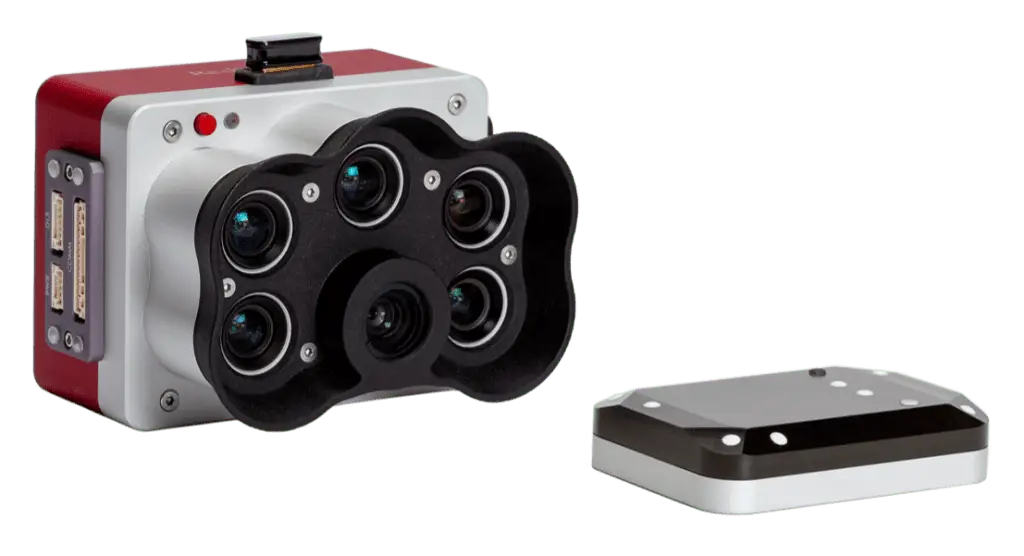

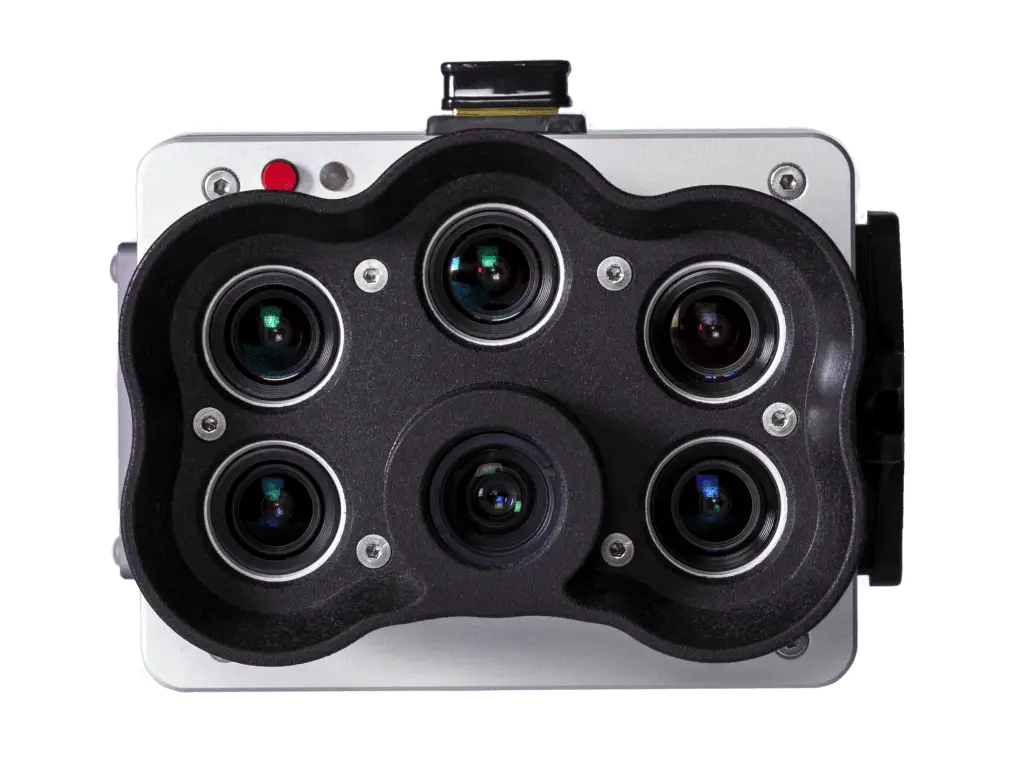

MicaSense RedEdge-P

Designed Specifically for UAV and Vegetation Mapping

RedEdge-P features a high-resolution panchromatic band for pan-sharpened output resolutions of 2 cm / 0.8 in at 60 m / 200 ft.

Its five narrow multispectral bands with scientific-grade filters make it the perfect camera for calculating multiple vegetation indices and composites.


Discover Key Features

Primary Applications

Plant Counting & Health Mapping


Disease Identification Applications

Advanced Crop Scouting

High-Res 3D Point Clouds

Species Differentiation & Weed Detection


Unveiling the Power and Performance Details

  • Weight 350 g (12.3 oz.) RedEdge-P + DLS 2
  • Dimensions 8.9 x 7.0 x 6.7 cm (3.5in x 2.8in x 2.6in)
  • RGB Output* 5.1 MP (global shutter, aligned with all bands)
  • Sensor Resolution 1456 x 1088 (1.6MP per MS band)
    2464 x 2056 (5.1MP panchromatic band)
  • Ground Sample Distance 7.7 cm per pixel (per MS band) at 120m (~400 ft) AGL
    3.98 cm per pixel (panchromatic band) at 120m (~400 ft) AGL
  • Field of View 50° HFOV x 38° VFOV (MS)
    44° HFOV x 38° VFOV (PAN)
  • External Power 7.0 V - 25.2 V
  • Power Input 5.5/7.0/10W (standby, average, peak)
  • IP Rating IP4X
  • Capture Rate Up to three captures per second raw DNG
  • Storage CFexpress card
  • Interfaces Three configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage
  • Spectral Bands Blue (475 nm center, 32 nm bandwidth),
    Green (560 nm center, 27 nm bandwidth),
    Red (668 nm center, 14 nm bandwidth),
    Red Edge (717 nm center, 12 nm bandwidth),
    Near-IR (842 nm center, 57 nm bandwidth)
  • Kit Contents RedEdge-P sensor
    Lens cover
    Calibrated reflectance panel
    DLS 2 light sensor with integrated GPS
    RedEdge-P and DLS 2 cables
    Mounting screws
    Hard carrying case
    CFexpress card reader
  • *With appropriate post-processing
    **Note: Specifications are subject to change without notice
