Soldier Robotic Controller
Introducing the SRoC (Soldier Robotic Controller): A Ruggedized GCS with Advanced Features, built on the robust Panasonic FZ-S1, offers a standardized, non-customizable solution designed for modern GCS users in defense robotics.
SRoC is designed for the innovative SRM radio platform with the Nett Warrior connector integrated into the controller handle, it provides exceptional communication flexibility even in harsh environments. In addition to the internal battery, the SRoC conveniently accommodates two Swappable Battery Modules (SBMs) on its back, allowing for easy power expansion.
Features
Elevating Ground Control Capabilities

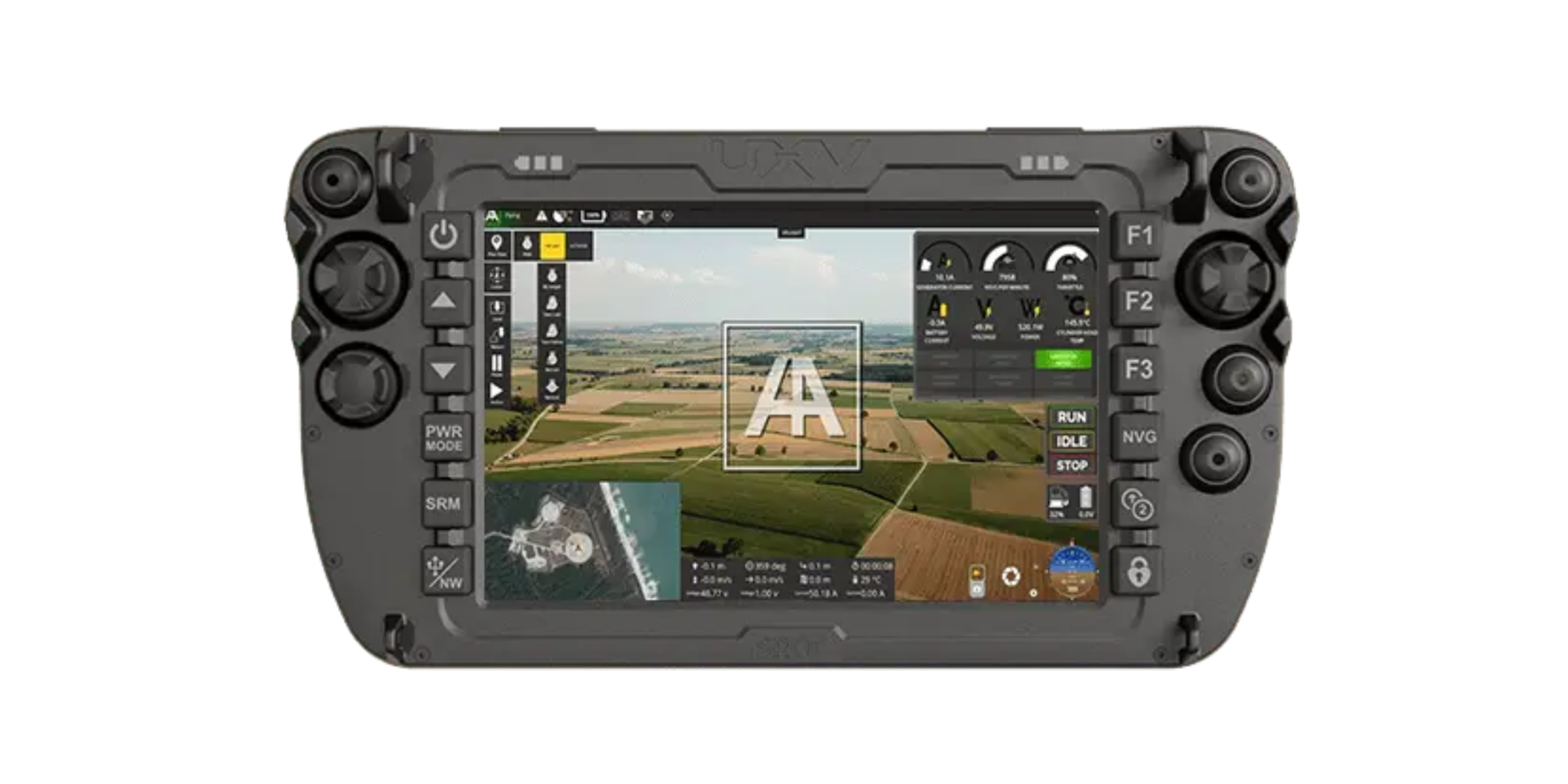

7" WXGA HID Display
10-point Capacities Multi Touch With Glove Touch Modes
NDAA Compliant
C-SRoC is fully compliant with the 2020 National Defense Authorization Act, Sec 848.
Easy Integration
Compatibility
Based on open source MAVLink communication protocol enabling support with HA QGC and various other GCS softwares.
Secure Connectivity
Rugged & Tactical Design
IP-68 rated design allows to operate in the most harsh environments.
Complete Control
Swappable Battery Module

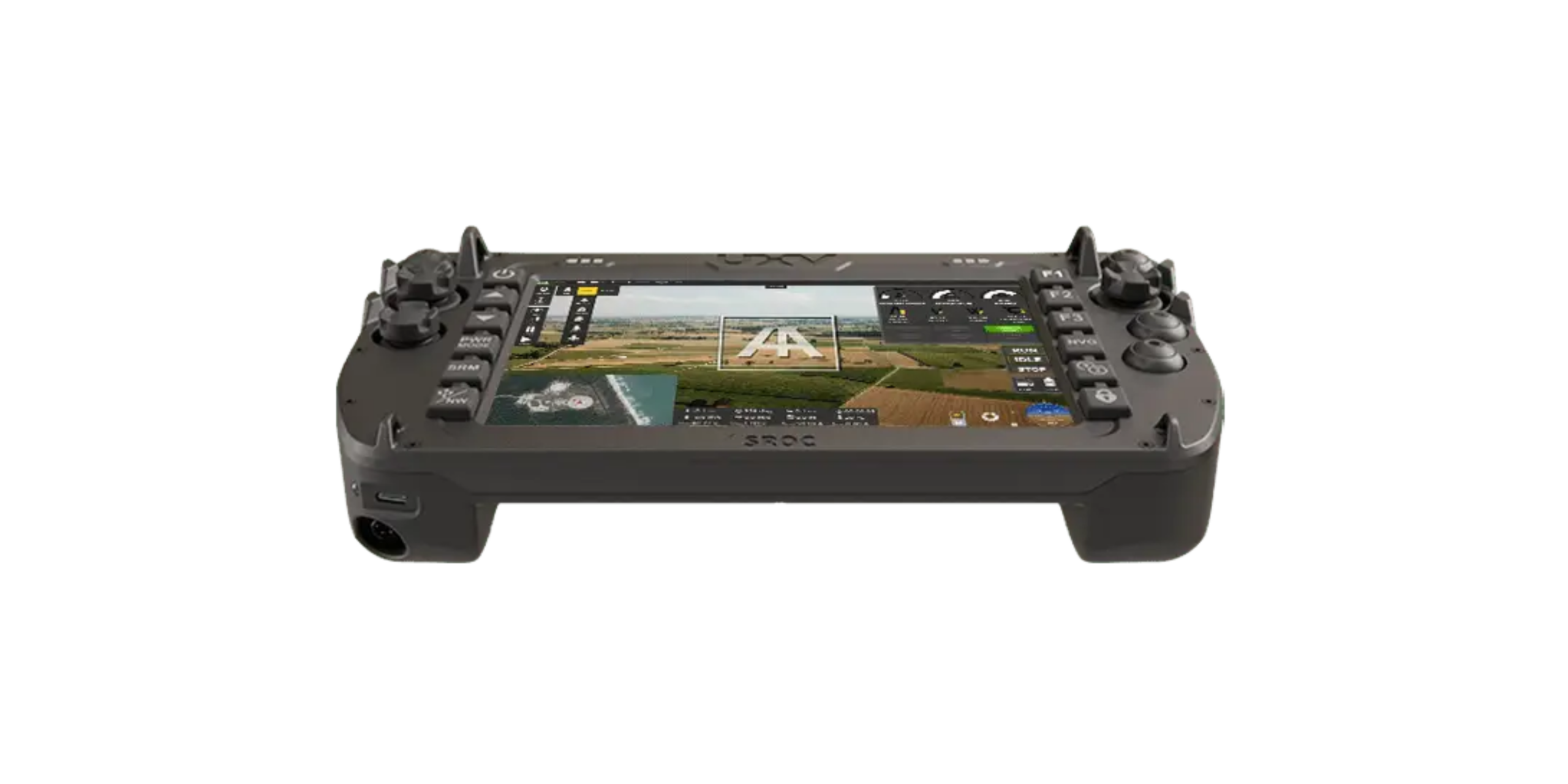

The C-SRoC is a ground control station intended for industrial use, optimizing the user with its sleek and improved ergonomic design. Battery expansion port allowing for extension of power capacity to meet mission needs and ruggedized weatherproof solution built for adverse weather conditions.
Modular Connectivity

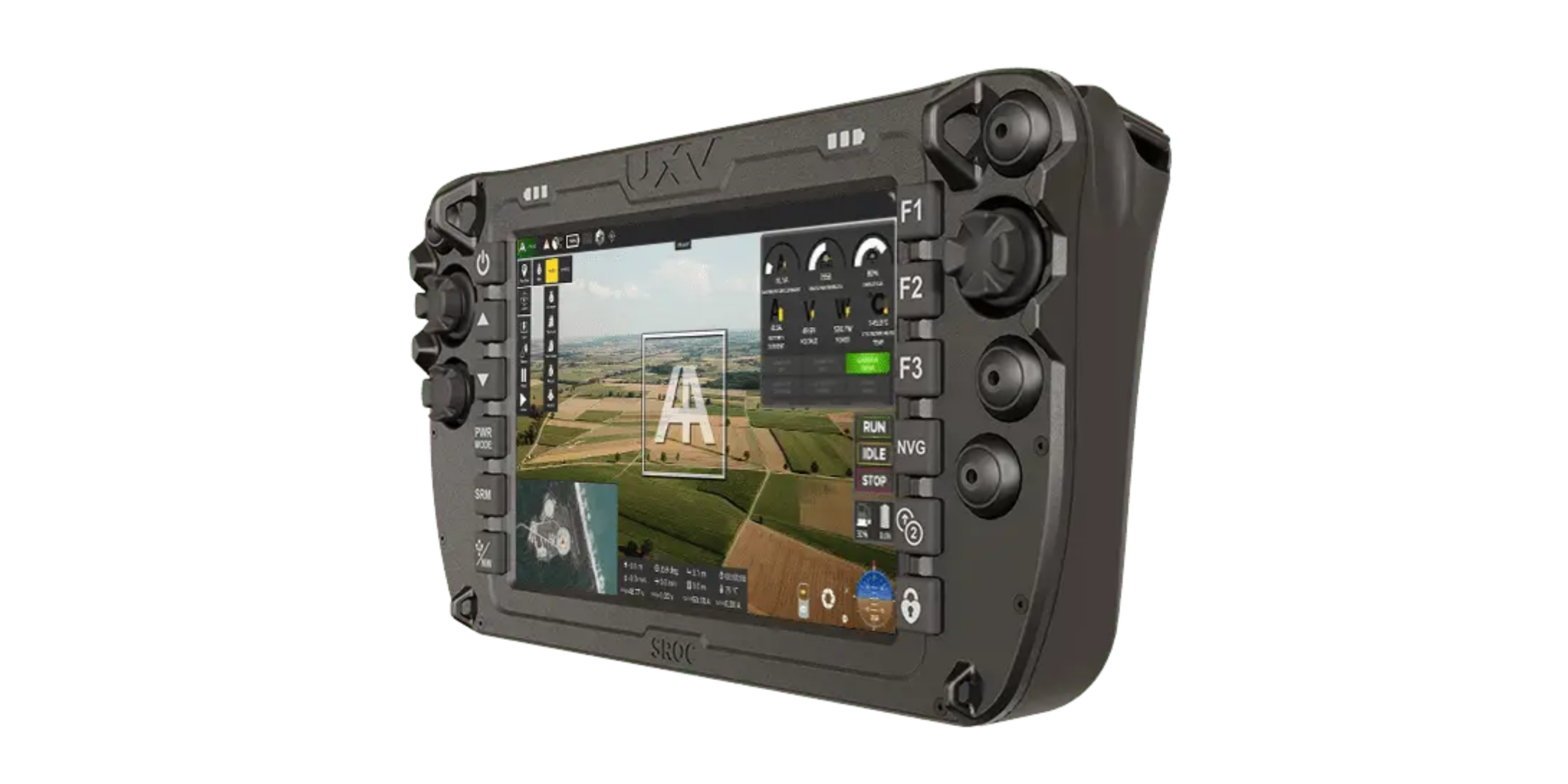

Engineered for robustness, reliability, and advanced functionalities, the SRoC serves as a ruggedized ground control station. It offers a standardized, highly adaptable solution by interfacing with our cutting-edge Swappable Radio Modules (SRM) and the Nett Warrior connector. The SRM design allows operators to easily interchange radio modules and in addition to its internal battery, the SRoC supports two Swappable Battery Modules (SMBs) for easy power expansion.
Specifications
Masterful Design: Explore the Precision
-
Mechanical:
-
Finish Soft touch coated ABS
-
Weight 2.04 lbs / 927 g
-
Dimension 10.08 x 5.11 x 2.68 inches / 256 x 140 x 68 mm
-
Mounting Chest Mount Available
-
Electrical:
-
Charging USB C (Tablet only), Nett Warrior (Tablet + Attached accessories)
-
Computation:
-
OS Android 11
-
CPU Qualcomm® SDM660 2.2GHz / 1.843 GHz Octa-core
-
Memory 4GB (LPDDR4)
-
Display 7" WXGA 1280x800 • 10-point capacities multi touch with glove touch modes - Display with direct bonding - Automatic screen rotation - Anti-reflective (AR) screen treatment - 750nit
-
Human Interfaces:
-
Front Side 1 x 5D joystick, 2 x 2-Axis Hall-effect joystick, 4 x push buttons, 12 x bezel buttons
-
Backside 2 x operator presence buttons
-
Top 2 x 1-Axis joystick, 2 x push buttons
-
Security:
-
Trusted Boot ARM® TrustZone® (Built-in)
-
Functional Safety Add on board optional
-
Connections:
-
USB-C USB 3.0 Type-C® host (OTG, BC 1.2, DP, HDMI)
-
Nett warrior port EUD compatibility with Nett warrior interface
-
SBM slot Hot Swappable dynamically balancing ruggedized battery port
-
SRM Sledge Swappable Radio Module with common mechanical and electrical interface
-
Environmental:
-
Built to Standards MIL-STD-810-H
-
Ingress rating IP65
-
Compliance CE, ROHS compliant
-
Operating Temperature -20°C to +50°C (*Charging above 10° only)
