NextVision Raptor
Providing Unmatched Capabilities

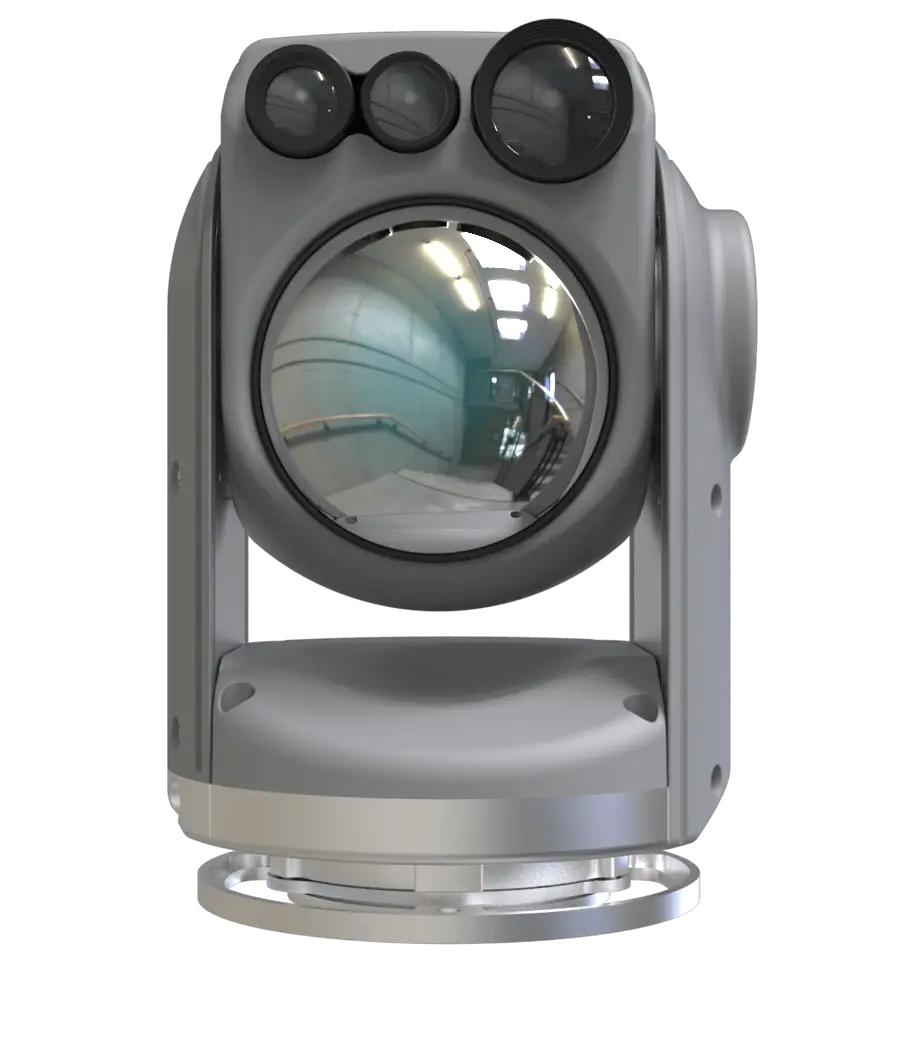

A lightweight long range dual EO-IR stabilized camera turret, the Raptor represents NextVision’s constant technological advancement. Featuringa significant IR range increase and a X80 EO zoom.
NextVision payloads are providing value in inspections, border control, military operations and more, for users as supplied by 250+ Manufacturers and Integrators, in over 40 countries.
-
X80 (X40
+ X2 digital) - 60° WFOV – 1.5° NFOV – 0.75° DFOV
-
1280×720Thermal Resolution
-
45° to +80°Pitch For
-
-180° to +180° Optional 360° ContinuousYall/Roll For
Specifications
Unveiling the Power and Performance Details
-
Weight 640 grams
-
Dimensions 90mm [3.5"] x 120mm [4.7"]
-
Temperature -20°C [-4°F] to +55°C [+131°F]
-
Visible Camera Configuration I
-
Visible 400-700 nm
-
Resolution 1280×720
-
Zoom x20 + x2 digital, (total x40) continuous zoom
-
HFOV 60° WFOV – 3° NFOV – 1.5° DFOV
-
Visible Camera Configuration II
-
Visible 400-700 nm
-
Resolution 1920 x 1080
-
Zoom x13 + x2 digital, (total x26) continuous zoom
-
HFOV 60° WFOV – 4.5° NFOV – 2.2° DFOV
-
Thermal Camera
-
LWIR uncooled (8-14m)
-
Resolution 1280×720
-
Zoom x4 digital, continuous zoom
-
HFOV 25° W.FOV – 6° D.FOV
