HX8/T
Carrier HX8 Tether
Elevating Expectations:
Virtually Limitless Flight Duration Capabilities
Harris Aerial proudly presents our flagship coaxial octocopter drone, the Carrier Hx8. This modified iteration of the Hx8 combines the capabilities of the LEAP Solo II’s continuous power and secure gigabyte speed data connectivity to a heavy lift unmanned aerial vehicle (UAV).
This high-power automated system is housed in two rugged, highly portable cases, which makes it ideal for two-person carry deployment in urban neighborhoods and the rugged terrain of the back country.
With motor redundancy and foldability in mind, the Hx8 capabilities when coupled with the LEAP Solo II are virtually limitless. The HX8 Tether allows operators to fly longer and more reliably with heavier payloads.
Features
Exponentially Improve Flight Duration & Capabilities
USaS Long Endurance Aerial Platform (LEAP)
The USaS Long Endurance Aerial Platform (“LEAP”) Solo II provides first responders, communications providers, military and public safety organizations a highly mobile UAV tether solution that enables them to engage in operations which require persistent, heavy lift aerial services.
Features
- 20+ Gbps air to ground data connection via secure hybrid tether
- 24-hour continuous on station air support
- Provides mobile overwatch protection up to 400’ AGL
- 21lb. payload capacity for one or more ISR and/or comms payloads
- “Fly by Tether” capability in RF Denied Environments
- Proven operational success in harsh environments
How it works
- The LEAP Solo II consists of the following: UAV Converter, Hybrid Tether, Ground Power Station, Tether Module, and Ground Control Station.
- USaS’s custom software makes the LEAP Solo easy to fly and very safe.
ELECTRONICS BAY
One of the most crucial components of the tether package, the Electronic Bay contains a 19in shock mount rack. This bay houses the Solo II computer and networking hub providing direct fiber and ethernet connections between the HX8, its payloads and the ground. This bay can also be configured with backhaul connectivity and GPS anti spoofing technology.
Features
- 8U, 10U, 12U shock mount rack options
- 48V accessory power for client equipment racks
- 1 or 2 dedicated fiber connections for client’s payload and backhaul connections.
- 3 gigabit ethernet ports with option for PoE
- 120VAC and USB power
- Secure Wi-Fi
- Telemetry data displayed on weatherproof screen and sent to remote devices
- Built in router manages all drone and payload data
- Connects payload(s) to satellite, fiber, microwave, etc. backhaul
How it works
The Electronics Bay connects directly to the LEAP Tether Module, which then links to the drone, providing it with a continuous power supply, high-speed data routing, and backhaul connectivity. This setup allows the drone to achieve virtually unlimited flight times by drawing power from a ground-based source and high-speed data connectivity from payload to backhaul.

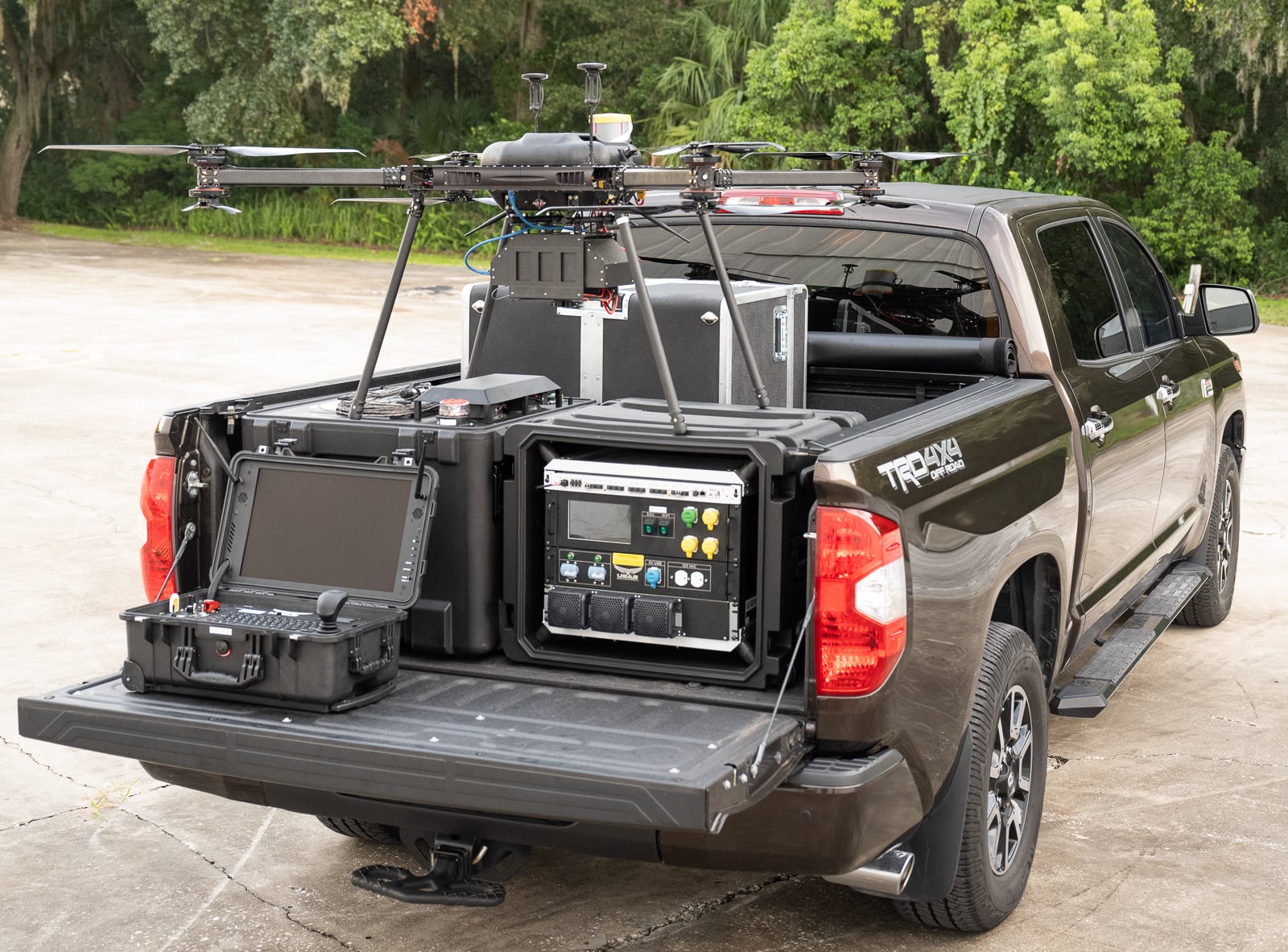

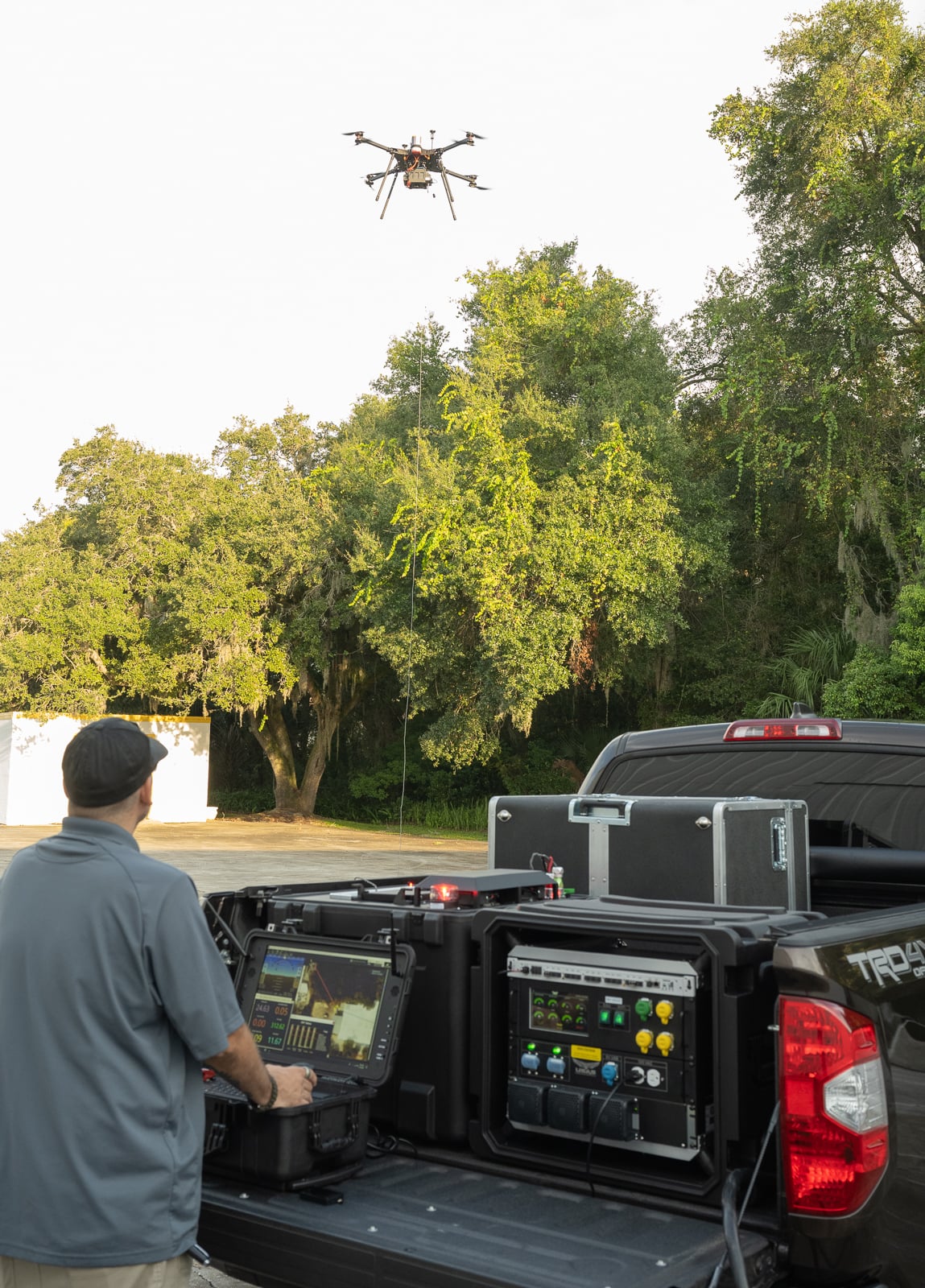

The Complete Tether Package
- Carrier HX8 drone
- Power Convertor On Aircraft
- Hybrid Tether
- Ground Power Station

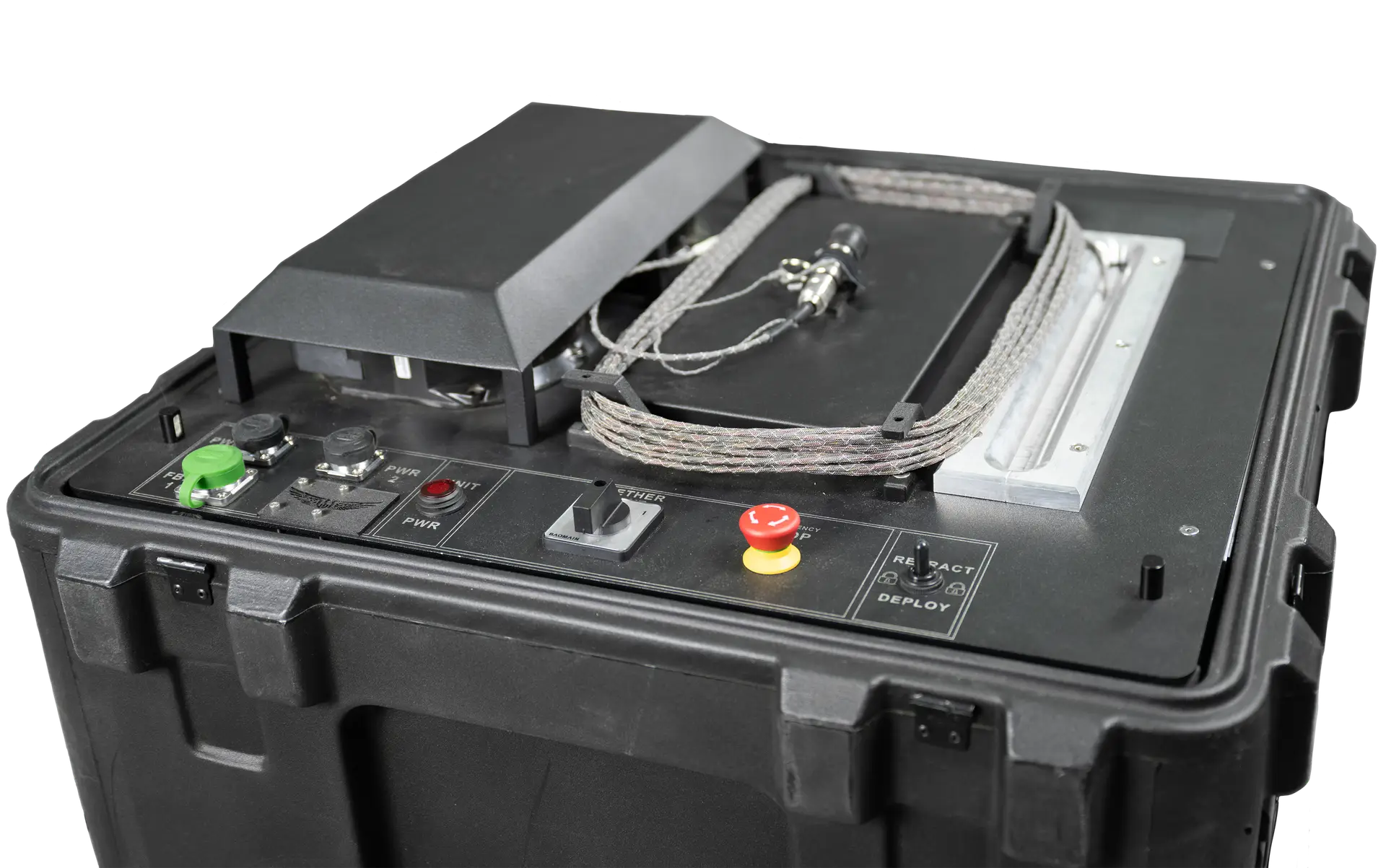

- Tether Module
- Electronics Bay
Applications
Elevating Operations: Unleashing the Carrier Hx8's Versatility
The Carrier Hx8 Tether sets a new standard in surveillance applications for Border Security, homeland security, and event security organizations.
Airborne for hours at a time carrying the most advanced EO/IR surveillance payloads and transmitting data to the ground at gigabit speeds. This heavy lift mobile platform provides persistent overwatch protection with some of the industry’s largest ISR cameras and sensors. The data can be backhauled to a command center hundreds of miles away.
The HX8 tether system can carry radar to support counter drone operations at airports and major events.
LEAP is used by carriers to increase capacity and coverage at large outdoor events (sports, concerts, fairs, marathons, rallies, etc.). LEAP is also used to provide cellular services when the land based network is inoperable after a disaster (hurricanes, tornadoes, forest fires, earthquakes, etc.).
The HX8 tether system can carry LMR, LTE 4G, 5G, MANET tactical radios, DAS and point to point microwave payloads. The HX8 Tether can provide dual band capacity of voice, text and video to 9,500+ simultaneous subscribers and have a coverage area of over 200 square miles. The HX8 can be operated in a mesh configuration to further increase capacity and the coverage area.
Traditional UAVs have limited communications capabilities, slow data speeds, and multiple battery change interruptions causing extra crew hours and days to be spent onsite.
From LIDAR and photogrammetry 3D mapping packages to hyperspectral, thermal imaging, and HD zoom cameras, the HX8 Tether effortlessly caters to various imaging requirements for mapping/inspection applications with unmatched flight time.
This flexibility enhances the drone’s capabilities across industries. It seamlessly transforms into a platform for precision surveying, detailed analysis, and comprehensive visual inspection, offering an unparalleled perspective for applications demanding advanced imaging technology. The Carrier HX8 Tether’s camera integration ensures that whatever your imaging or remote sensing needs, it stands ready to capture and deliver vital insights with utmost precision.
Technical Specifications
LEAP SOLO II
The Most Powerful, Proven UAS Tether System
General Specifications
-
Power Available For UAS & Payloads 2.5Kw / 5Kw / 6.2Kw
-
Operating Voltage 27Vdc / 52Vdc
-
Payload Power 12Vdc, 24Vdc, 48Vdc
-
Input Power 120Vac / 240Vac (recommended)
-
Accessory Power 120Vac / 5Vdc (USB)
-
Ground Based Equipment Accessory Power 48Vdc (400w) Optional
-
Secure Air to Ground Data Throughput 2 Fibers (20Gps) / 3 Fibers (30Gps)
-
Secure Flight Operations Fly By Tether
-
System Telemetry 7" Sunlight Visible Display
-
Payload Data Ports 2 Ethernet, 1 PoE
-
Payload Interoperability Integrated Data Hub
Operation & Environmental
-
Operational Environment -20F to 120F, Light Rain & Sand
-
Tether Length 450Ft (Standard)
-
Electronics Bay Case 8U Shock Mount Rack (120lbs)
-
Tether Module Case 28" x 28" x 27" (120lbs)
-
Tether Control Auto Tensioner, Vehicle Mountable
-
UAC Agnostic Design Single Rotor, Multi Rotor, Terrestrial
Specifications
Beyond the Blueprint: Explore the Unrivaled Engineering
With a 68-71” wingspan depending on propeller size & platform series chosen, the geometry of the Carrier Hx8 is incredibly stable at very high speeds
General
-
Maximum Takeoff Weight: 55 lb | 25 kg
-
Empty Weight: 21. 5lb | 9.8 kg
-
Max Payload: 17.6 lb | 8 kg
-
Max Flight Time: 48min (No payload)
-
Max Speed: 33.6 mph | 14m/s
-
Max Vertical Speed: 5.6 mph | 2.5 m/s
-
Max Lean Angle: 30 degrees
-
Dimensions (Unfolded): Prop Tip to Tip: 2425.6 mm | Height: 663.8 mm
Landing Gear Base: Length: 803.5 mm | Width: 577.5 mm
-
Flight Modes: GPS Loiter | Altitude Hold | Fully Autonomous
-
Radio Frequencies: 2.4 GHz (ISM) | 902-928 MHz
-
System Architecture: Open Source
-
GPS: Dual RTK GNSS
-
Payload Mounting: Dampened Modular Quik-Release
-
Flight Safety Systems: Radio Connectivity Monitoring | Battery Voltage & Amperage Monitoring
-
Dimensions (Folded): Height: 273.1 mm | Length: 704.9 mm | Width: 704.9 mm
Powerplant & Batteries
-
Battery Type: 12S1P Smart Lipo (2xBatteries)
-
Peak Battery Voltage: 50.4 V
-
Nominal Battery Voltage: 44.4 V
-
Auxiliary Power: 5.3 V, 12 V, 24 V, 48 V Power Ports
-
Battery Capacity: 16.000 mAh
-
Battery Life Cycle: 250 Flights
-
Battery Connector AS150U-F (Anti-Spark)
-
Safety Features Battery Voltage & Amperage Monitoring
Operation & Environmental
-
Operation Temp: -20°C to 49°C | -4°F to 120°F
-
Max Operational Wind Speed: 25 mph | 11 m/s
-
Service Ceiling AMSL: 12,000 ft | 3658 m (Payload Dependant)
-
Service Ceiling AGL 400 ft | 122 m (FAA Limited)
Motors & Propellers
-
Motors: 8
-
Equivalent KV: KV100 Motors
-
Optimal RPM 2200 - 2800 RPM
-
Motor Configuration: X8 OCTA QUAD
-
Propeller Material: Carbon Fiber With Aluminum Hub
-
Propeller Dimensions: 29.2 in x 9.2 in
Command & Control
-
Harris C-GCS: 19" Dual HD Display | Hands-on Throttle-and-Stick (HOTAS) | Freq: 902-929 MHz | 12 Channel Functionality | NDAA Compliant
Flight Controller
-
Flight Controller: Cube Orange
-
Data Transmission Range: 12.5 mi | 20 km (Ideal Conditions)
-
Firmware: Custom ArduPilot
-
Takeoff and Landing: Autonomous or Manual Control
-
Flight Tracking: ADS-B (Receiver)
-
Safety Features: Triple Redundant IMU | Redundant Power Supply
