C-GCS

Carrier Ground Control Station

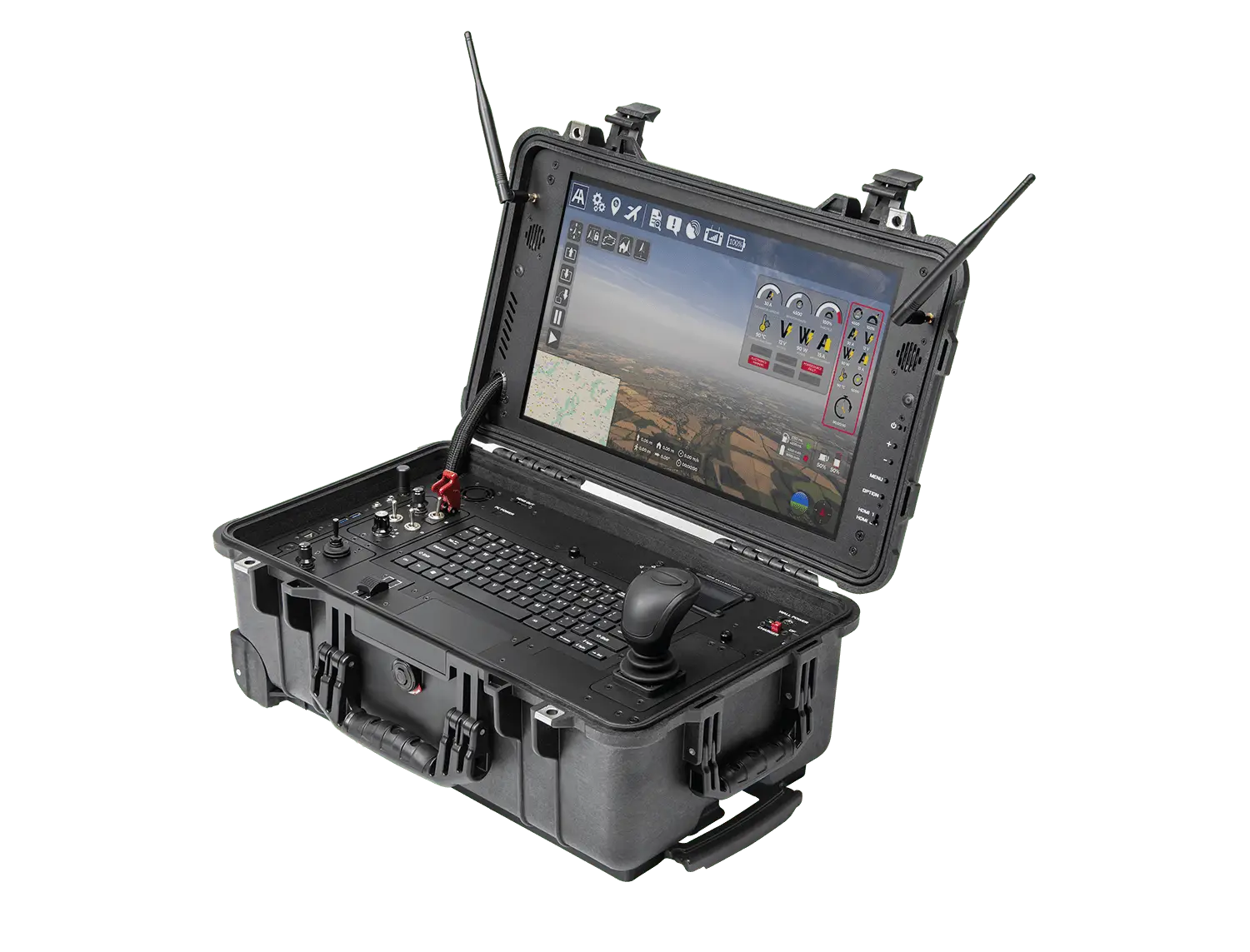

Introducing our Professional Ground Control Station with a daylight-viewable 19 inch HD Video Display, Mission Planning Screen, Smooth 3-axis joystick, and much more. C-GCS is fully compatible with all of Harris Aerial’s Carrier drones and easily integrated with most third-party drone platforms. C-GCS is a revolutionary break-through in safe and easy operation of unmanned aerial vehicles

View C-GCS Brochure

C-GCS

Features

Elevating Ground Control Capabilities

19 inch HD Display

Large HD sunlight-viewable screen with 1200 NITS

Robust Power

Uninterrupted power-switching between AC and DC sources

Easy Integration

Fly any UAV type and most autopilot systems using revolutionary GCS SmartView Interface

HOTAS

Hands-On-Throttle-And-Stick layout allows for operators to access aircraft functions without having to remove their hands from controls

Channels

12 Channel Functionality allows single operator to control many auxiliary functions.

Rugged & Tactical Design

Seamless design with rugged Pelican Case allows for operator to rapidly and easily deploy and transport GCS

Superior Transportability

Our C-GCS optionally comes with backpack straps allowing operator to quickly and easily pack up and move

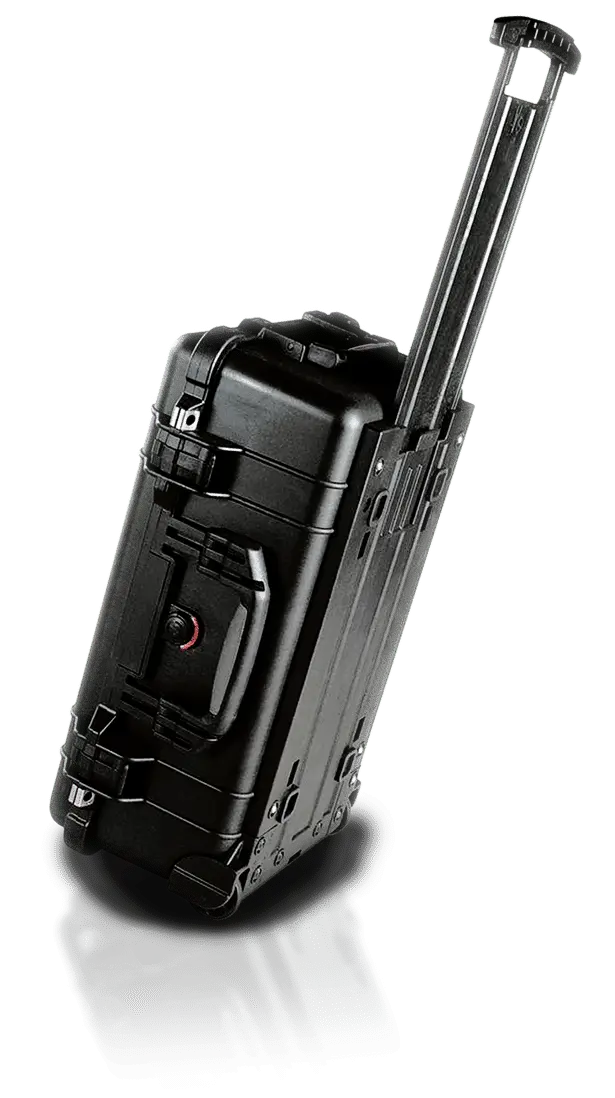

Equipped with wheels and built-in handle for “suitcase-style” transportation

Specifications

GCS Stand

Masterful Design: Explore the Precision

  • Channels 12 Channel Functionality
  • Display 19" Large HD sunlight-viewable screen with 1200 NITS
  • GCS Interface Desert Rotor GCS Smart View TM OSD
  • RF Compatibility RFD900X, SILVUS Technolgoies Stream Caster, Microhard, Any Military Grade IP Radio
  • Auxiliary Bay 1 Plug-in-Play Video Receivers / Transmitter Modules Plug-in-Play 4G/LTE Radio / Microhard”‘ Modems
  • Battery 4S LI-ION 5.2Ah (Run Two in Parallel for 10.4Ah)
  • Flight Controls HOTAS (Hands on Throttle and Stick) Layout APEM 55’M Hall Effect – 3-AXIS / 2-Top Button
  • Throttle Delrin Machined Precision Slide Potentiometer 2-AXIS Payload & Gimbal Controls w/Dial
  • Switch Array 6-POS/3-POS/2-POS/Guarded/Button/Rotary
  • Embedded PC Logic Supply™ lntel/DIMM/SSD Storage/Windows
  • Wireless Intel 8260 M.2 Wi-Fi AC, Bluetooth 4.0, vPro
  • Peripherals Integrated Keyboard & Hula Point™ Mouse Sensor
  • Case Pelican”‘ 1510 (22″ x 13.81″ x 9″) L x W x D – 2SLBS
  • Color Black Onyx or Desert Gold
  • Temp Range 0 ~42° Celsius

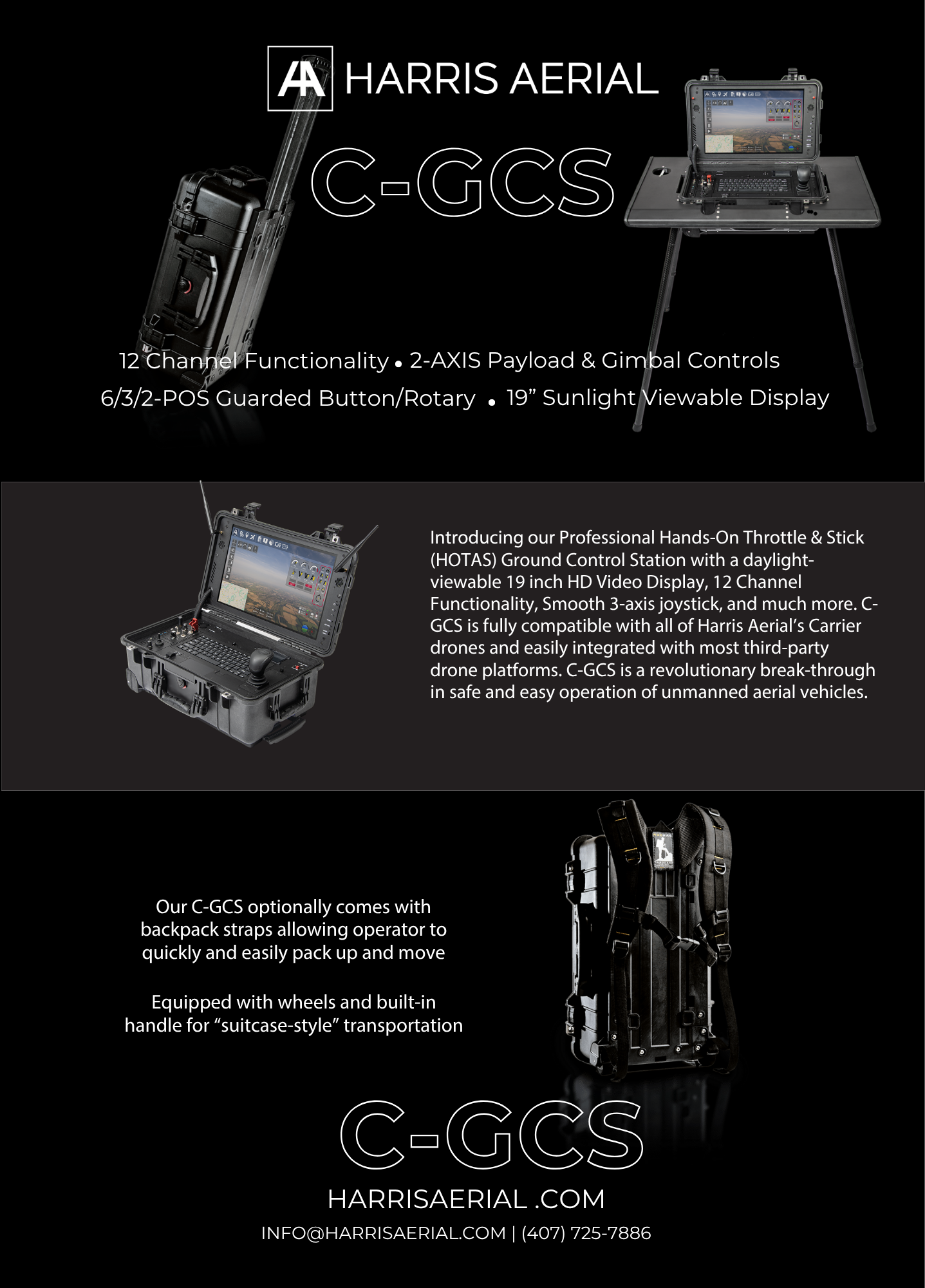

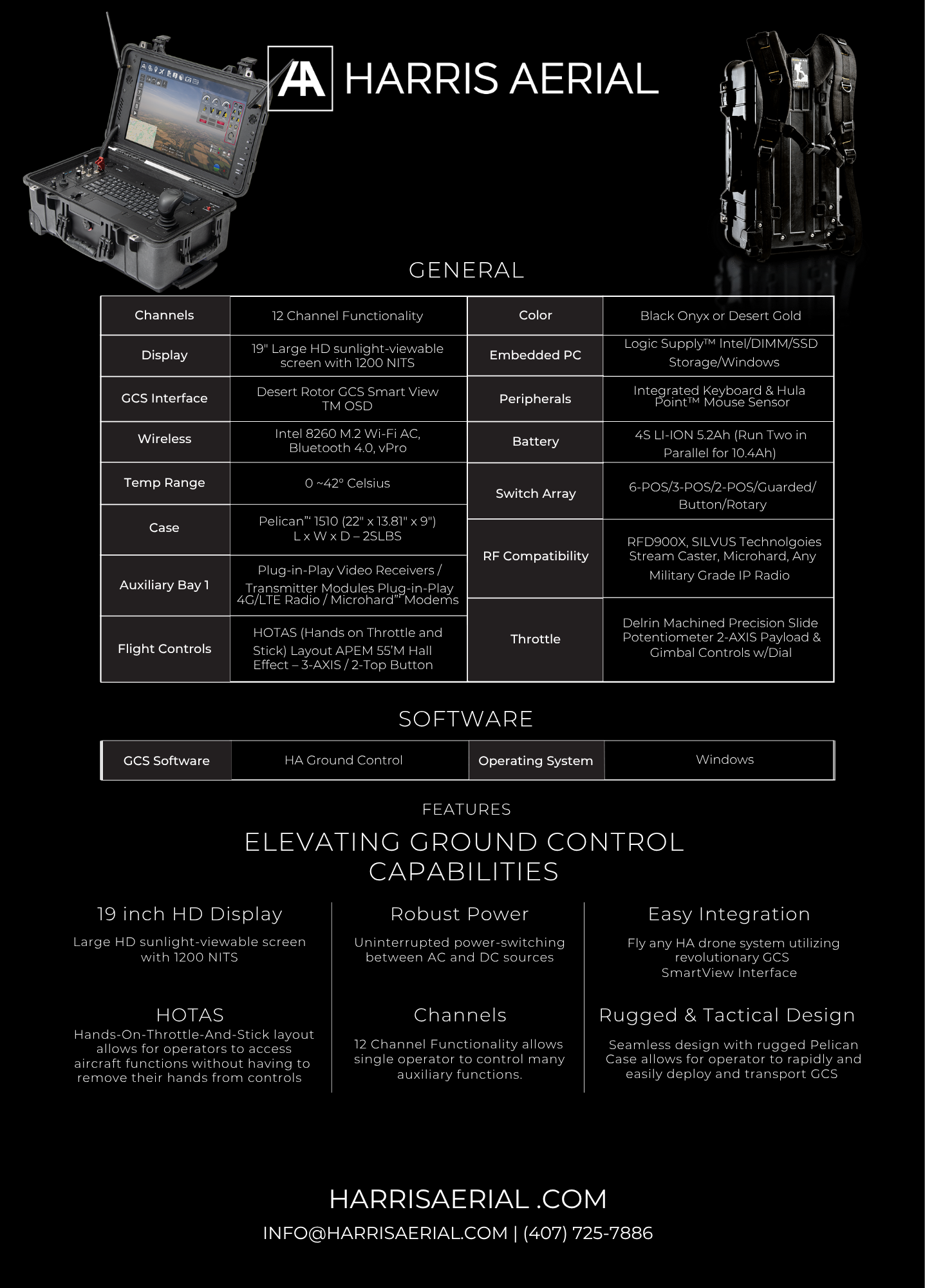

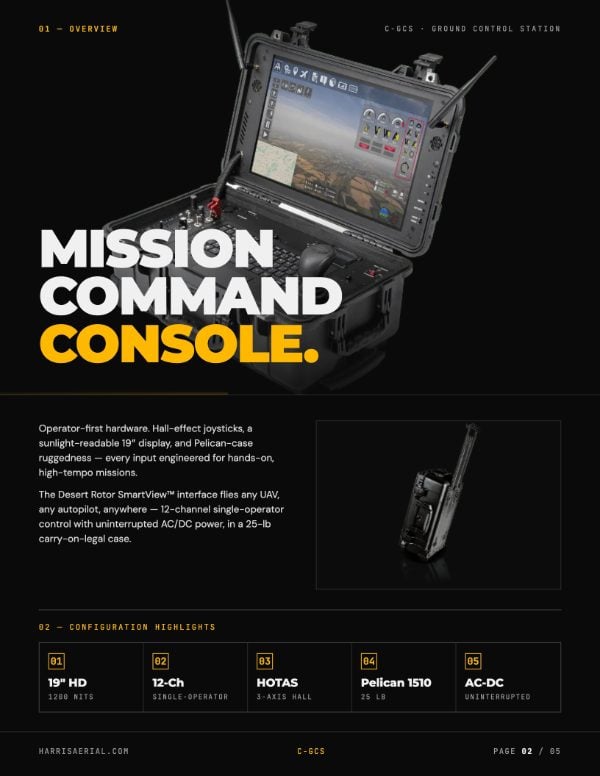

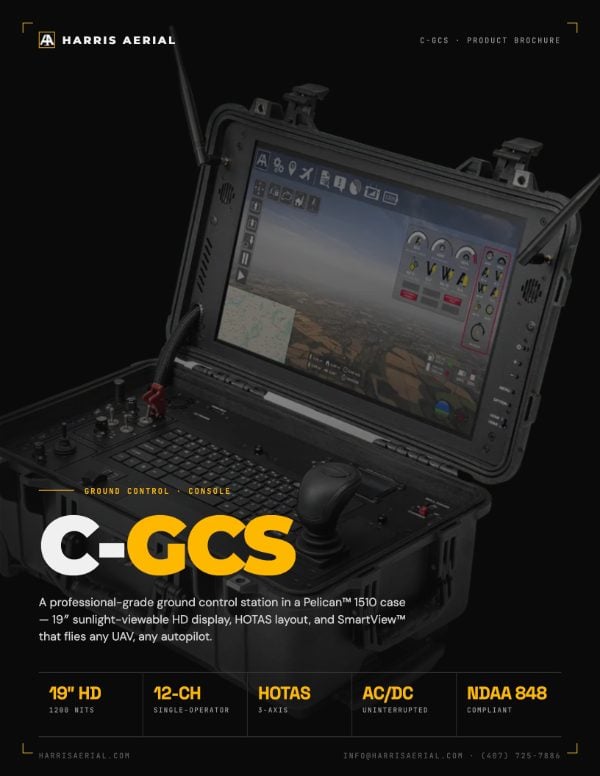

View the C-GCS brochure

C-GCS Brochure
