Carrier H6HL

Defying Limits: Unmatched Heavy-Lift Capability

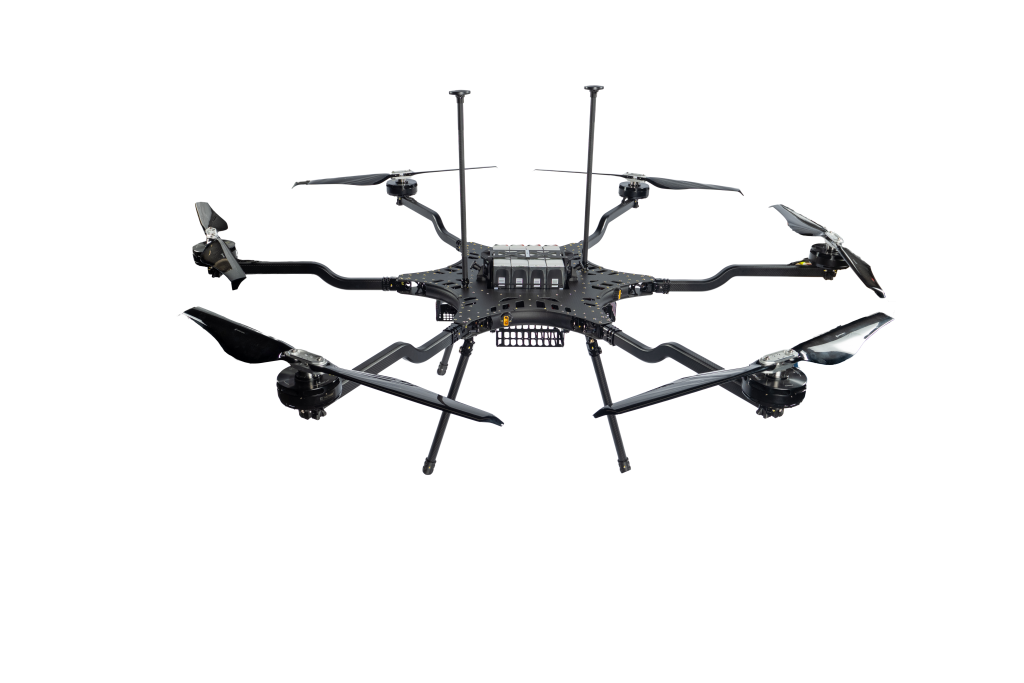

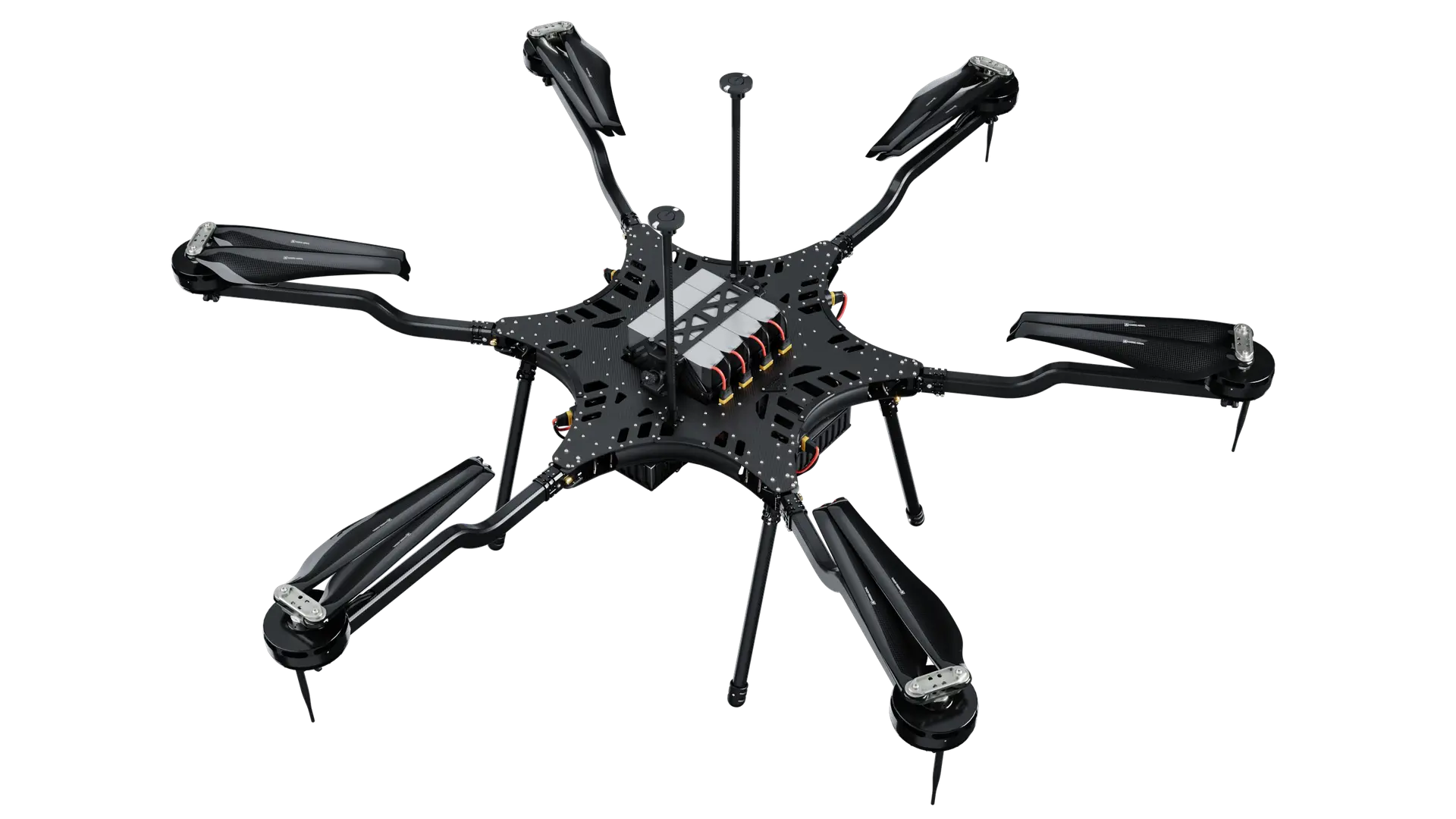

Harris Aerial proudly presents our flagship heavy-lift UAV Carrier H6 HL (heavy-lift). We began development on the Carrier H6 HL in response to the demand for a heavy-lift multirotor UAV capable of carrying payloads not offered by typical commercial drones.

With payload and flight readiness in mind, the H6 HL framework and other utilized hardware have been thoughtfully designed with over 6 years of development. With over 300 lbs of available thrust the H6 HL is able to tackle the most demanding payloads. The Carrier H6 HL is manufactured in the USA with the tightest tolerances to ensure the ultimate satisfaction for our customers.

Features

Adaptable, Powerful, Versatile

Easy Mission Planning

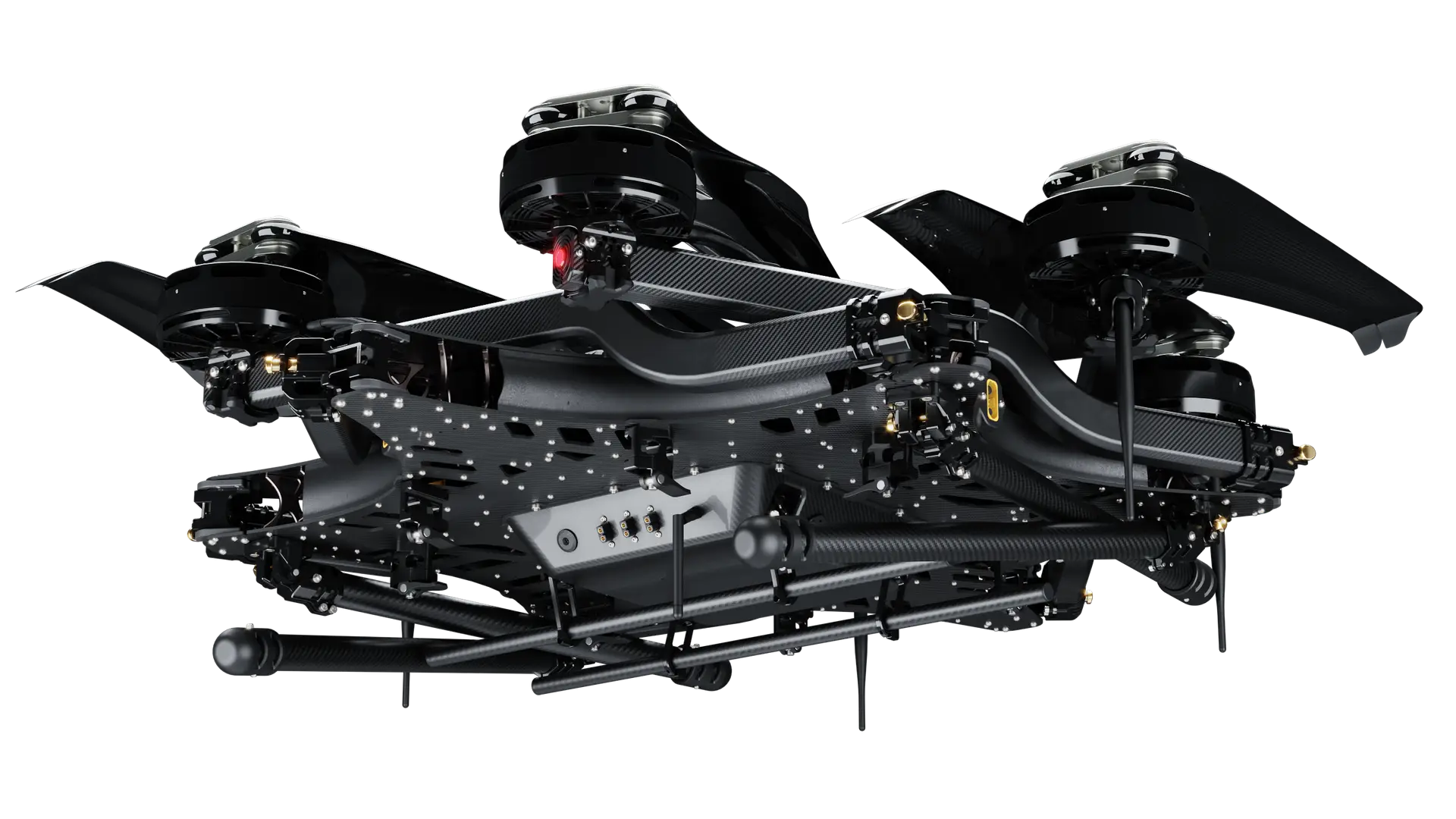

Intuitive GCS Telemetry

Transform Your Aerial Operations

Upgrade to the H6HL Carrier for unmatched flight endurance and efficiency. Experience electric-powered performance with extended flight times and superior payload capacity.

Features

Innovative Mastery

Compact for Transport

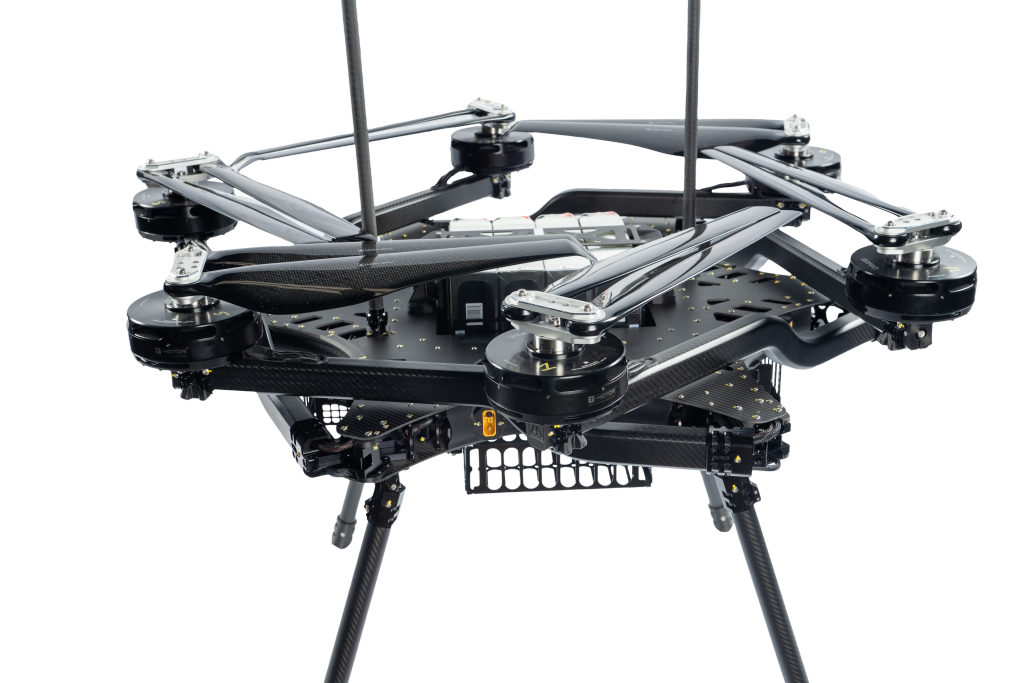

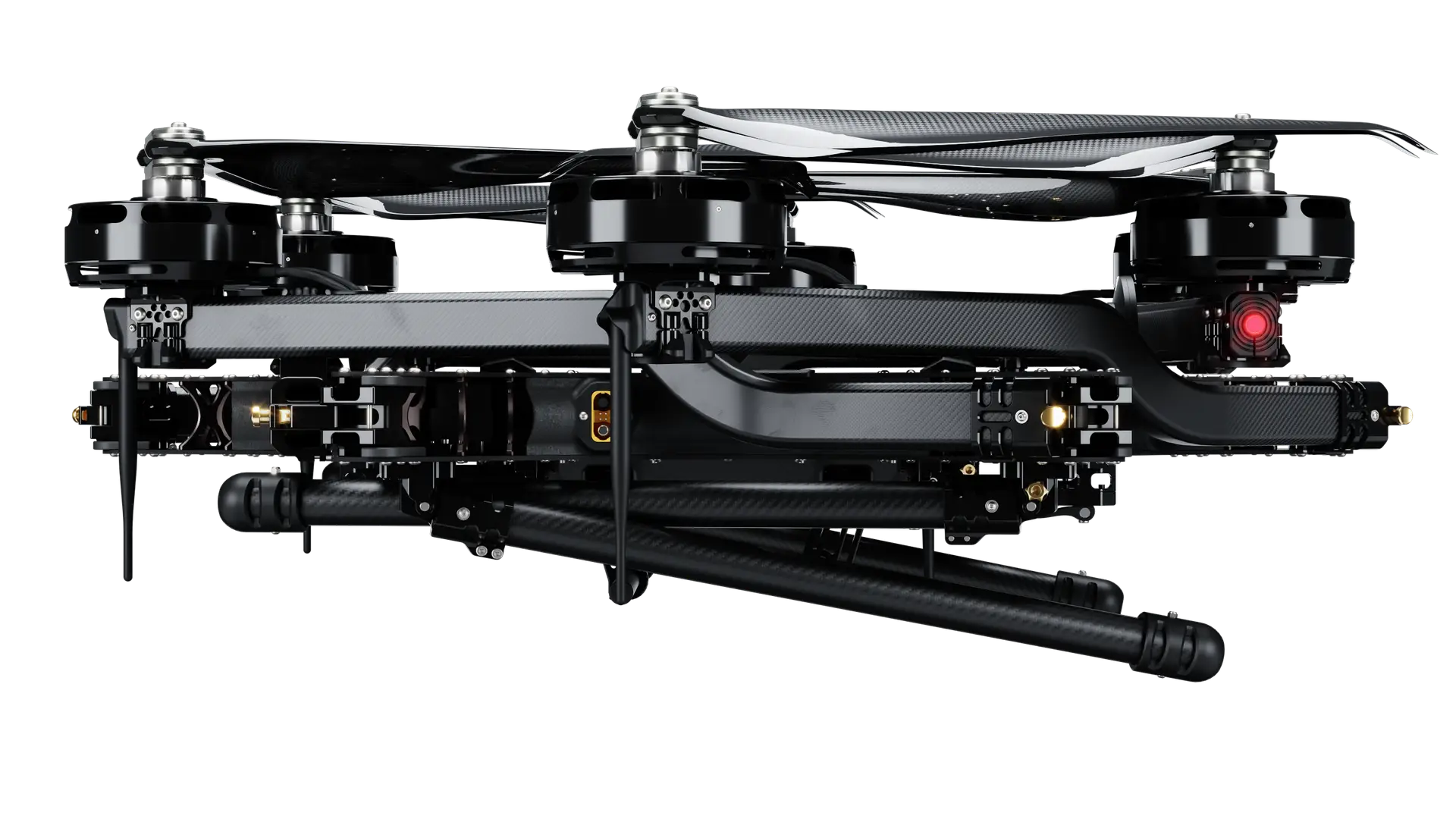

The H6 HL features the Harris Aerial patented foldable heavy-lift airframe design. Foldable arms and landing gear allow the aircraft to fold down to just 40% of its flight ready size.

Versatile Battery Configurations

The ability to use up to 8x 30,000 MAH batteries and still handle a 60 lb payload puts the H6 HL in a class of its own.  Alternatively, the aircraft can use just 4 batteries and carry a payload up to 40kg!

Innovative Design

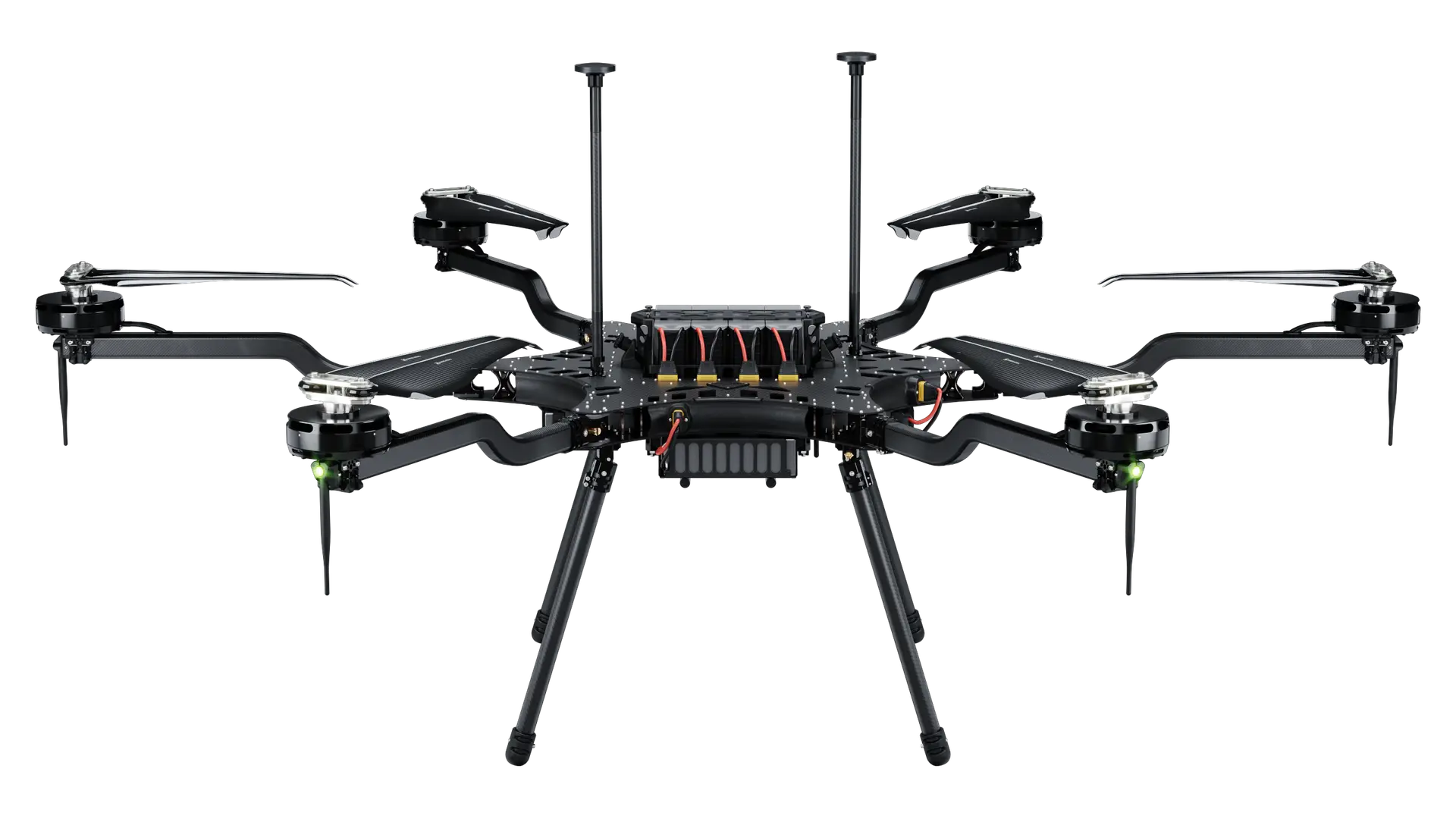

We’ve raised the bar with an innovative slide rail and cam battery tray system that reduces time-to-launch without sacrificing security.

Payload and Flight Times

With payloads up to 40 kg, the H6 HL offers uncompromising utility while maintaining usable flight times.

Applications

Beyond Boundaries: Limitless Uses

Specifications

Unveiling Excellence:
Unmatched Capabilities

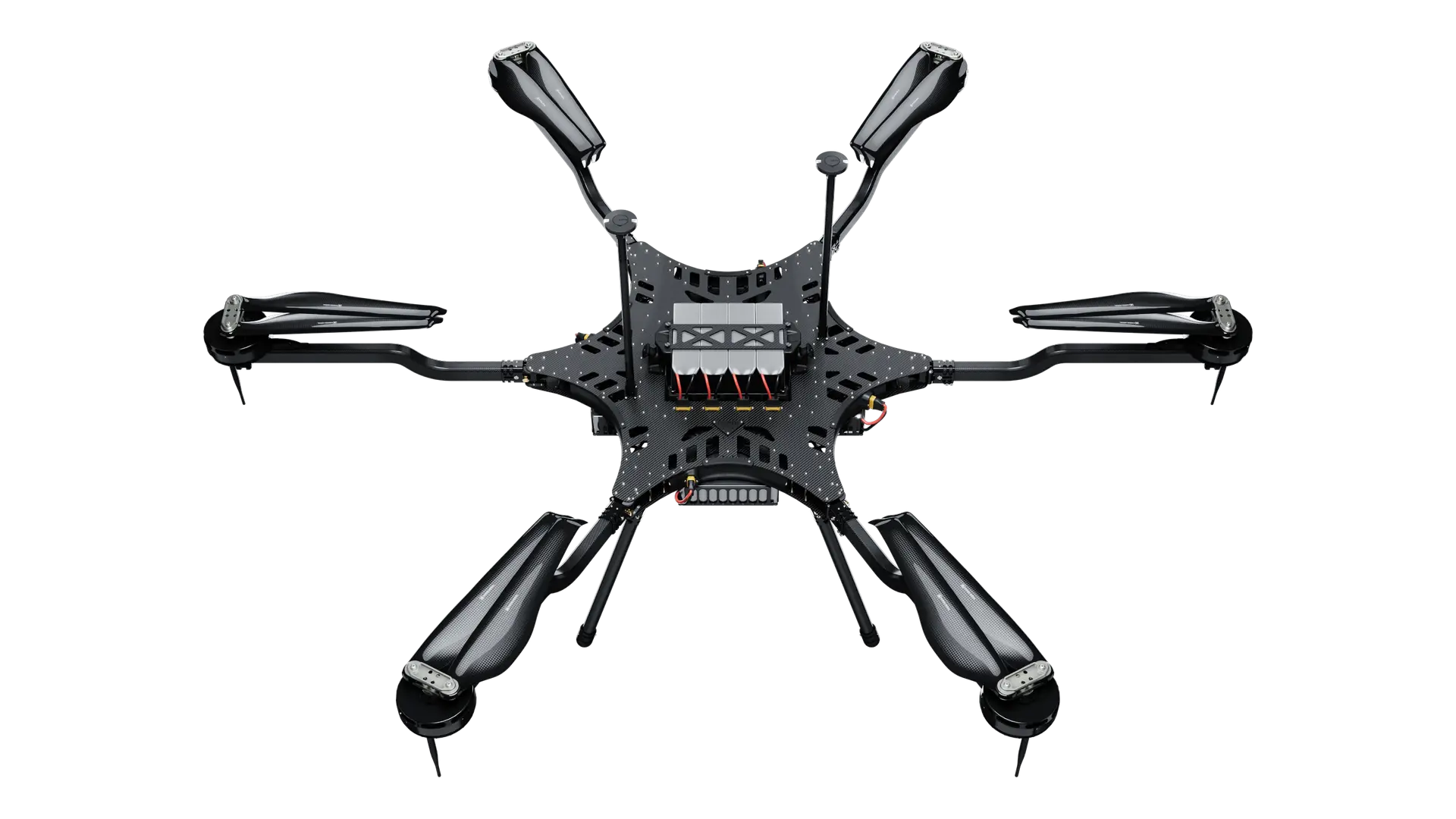

With a 10.4 foot wingspan, Carrier H6 HL is in heavy-lifting weight class of its own, trusted by professionals around the world for reliable and stable flight.

General

  • Maximum Takeoff Weight: 209.4 lbs | 95 kg
  • Empty Weight: 121.3 lb | 55 kg
  • Max Payload: 88.2 lb | 40 kg
  • Flight Time: 45 min (No Payload)
  • Max Speed: 33.6 mph | 15 m/s
  • Max Vertical Speed: 5.6 mph | 2.5 m/s
  • Max Lean Angle: 30 degrees
  • Dimensions
    (Unfolded)
    Prop Tip to Tip: 3167.1 mm | Landing Gear Base:
    Length: 640.5 mm | Width: 705.5 mm | Height: 699.7 mm
  • Flight Modes: GPS Loiter | Altitude Hold | Fully Autonomous
  • Radio Frequencies: 2.4 GHz (ISM) | 902-928 MHz
  • System Architecture: Open Source
  • GPS: Dual RTK GNSS

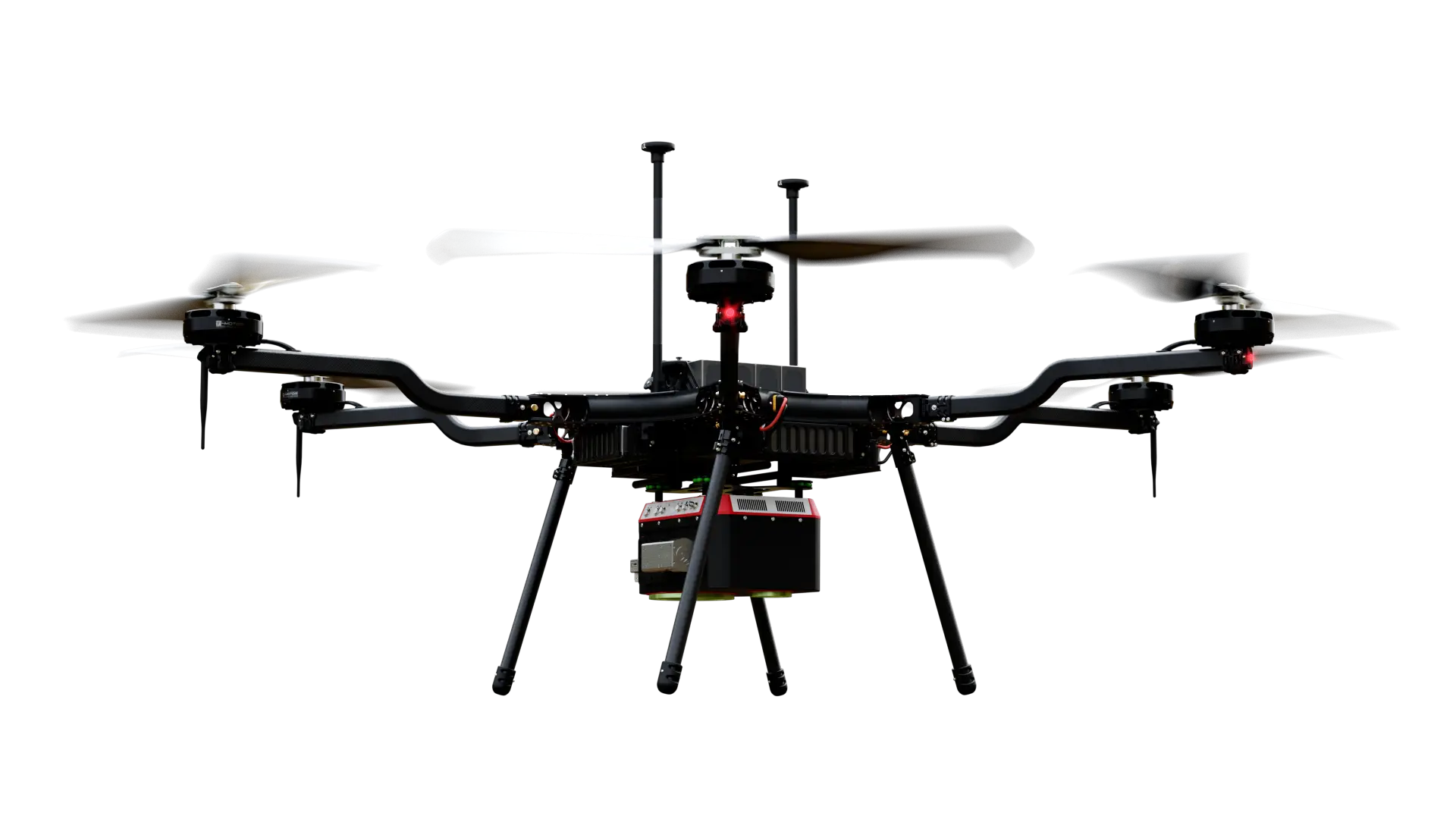

  • Payload Mounting: Dampened Modular Quik-Release
  • Weather Rating: Light Rain
  • Flight Safety Systems: Radio Connectivity Monitoring | Battery Voltage & Amperage Monitoring
  • Dimensions (Folded): Length: 1000 mm | Width: 1000 mm | Height: 355.6 mm

Powerplant & Batteries

  • Battery Type: 6S1P Lipo (8xBatteries)
  • Peak Battery Voltage: 50.4 V
  • Nominal Battery Voltage: 44.4 V
  • Auxiliary Power: 5.3 V, 12 V, 24 V, 48 V Power Ports
  • Battery Capacity: 30.000 mAh
  • Battery Life Cycle: 250 Flights
  • Battery Connector AS150U-F (Anti-Spark)
  • Safety Features Battery Voltage & Amperage Monitoring

Operation & Environmental

  • Operation Temp: -20°C to 49°C | -4°F to 120°F
  • Max Operational Wind Speed: 25 mph | 11 m/s
  • Service Ceiling AMSL: 12,000 ft | 3658 m (Payload Dependant)
  • Service Ceiling AGL 400 ft | 122 m (FAA Limited)

Motors & Propellers

  • Motors: 6
  • Equivalent KV: KV100 Motors
  • Optimal RPM 2200 - 2800 RPM
  • Motor Configuration: HEXA X
  • Propeller Material: Carbon Fiber With Aluminum Hub
  • Propeller Dimensions: 40 " x 13.1 "

Command & Control

  • Harris C-GCS: 19" Dual HD Display | Hands-on Throttle-and-Stick (HOTAS) | Freq: 902-929 MHz | 12 Channel Functionality | NDAA Compliant

Flight Controller

  • Flight Controller: Cube Orange
  • Data Transmission Range: 12.5 mi | 20 km (Ideal Conditions)
  • Firmware: Custom ArduPilot
  • Takeoff and Landing: Autonomous or Manual Control
  • Flight Tracking: ADS-B (Receiver)
  • Safety Features: Triple Redundant IMU | Redundant Power Supply
